Powertip PH128800T002-ZBC01 - CTP display
MatrixTFT
Screen diagonal (inch)10.1
Graphics display resolution standardWXGA
Resolution (px)1280 x 800
Touch panel typeCTP-GG
Luminance in cd/m2500
Controller (IC)Himax HX8288+HX8695
Video interfaceLVDSDetails
Parametry
Find similar products
Brand
Symbol
PH128800T002-ZBC01
Producer code
5900000728988
Matrix
TFT
Screen diagonal (inch)
10.1
Graphics display resolution standard
WXGA
Resolution (px)
1280 x 800
Aspect ratio
16:10
Touch panel type
CTP-GG
Luminance in cd/m2
500
Controller (IC)
Himax HX8288+HX8695
Video interface
LVDS
Viewing angles
85/85/85/85
Viewing direction
Full
Lens thickness
1,1 mm
Touch panel controller (IC)
Microchip MXT1066
Touch panel interface
USB
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH128800T002-ZBC01

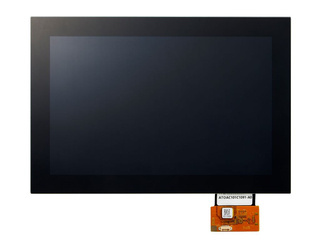

A 10.1" TFT display with a capacitive touch panel, created by Powertip. The display has 1280 x 800 WXGA resolution and an LVDS interface. Brightness: 500. Operating temperature range -20...+70°C.

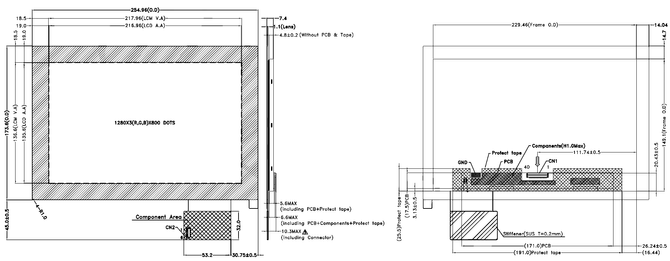

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
