Powertip PH128128T041-LAA07 - TFT display
MatrixTFT
Screen diagonal (inch)1.44
Graphics display resolution standardQQVGA
Resolution (px)128 x 128
Touch panel typeNone
Luminance in cd/m2310
Controller (IC)Sitronix ST7735S
Video interfaceParallel 8080 8-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH128128T041-LAA07
Producer code
5900000823409
Matrix
TFT
Screen diagonal (inch)
1.44
Graphics display resolution standard
QQVGA
Resolution (px)
128 x 128
Aspect ratio
1:1
Touch panel type
None
Luminance in cd/m2
310
Controller (IC)
Sitronix ST7735S
Video interface
Parallel 8080 8-bit
Viewing direction
12H
Viewing angles
15/45/45/45
Temperature range
-20...+70°C
Voltage
2,7 - 3,3V
Powertip PH128128T041-LAA07
A TFT display created by Powertip with 128 x 128 QQVGA resolution, 1.44", with 80-8 bit interface. Operating temperature range -20...+70°C.

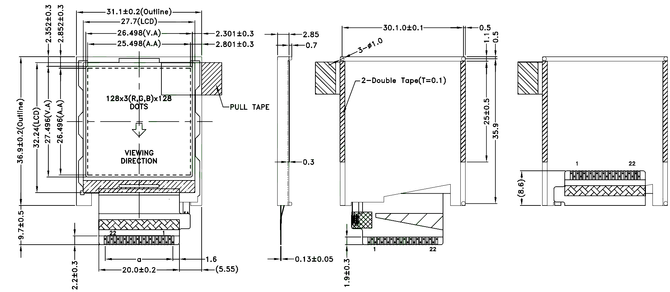

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
