Powertip PH102600T015-IBC01 - CTP display
Powertip PH102600T015-IBC01 - CTP display
Powertip PH102600T015-IBC01 - CTP display
Powertip PH102600T015-IBC01 - CTP display

Powertip PH102600T015-IBC01 - CTP display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWSVGA
Resolution (px)1024 x 600
Touch panel typeCTP-GG
Luminance in cd/m2470
Controller (IC)EK79001E+EK73215B
Video interfaceLVDS
excl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
PH102600T015-IBC01
Producer code
5900000801032
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
WSVGA
Resolution (px)Resolution (px)
1024 x 600
Aspect ratio
17:10
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
470
Controller (IC)Controller (IC)
EK79001E+EK73215B
Video interfaceVideo interface
LVDS
Viewing angles
60/60/60/60
Viewing direction
6H
Lens thickness
0,7 mm
Touch panel controller (IC)Touch panel controller (IC)
Chipone ICNT8952
Touch panel interface
I2C
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH102600T015-IBC01

A 7" TFT display with a capacitive touch panel, created by Powertip. The display has 1024 x 600 WSVGA resolution and an 6/8-bit LVDS interface. Brightness: 470. Operating temperature range -20...+70°C.

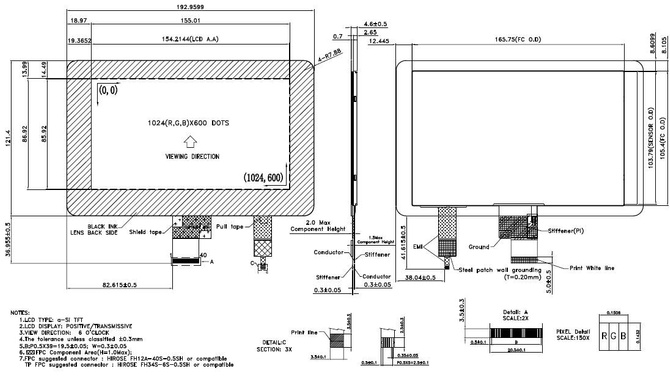

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
