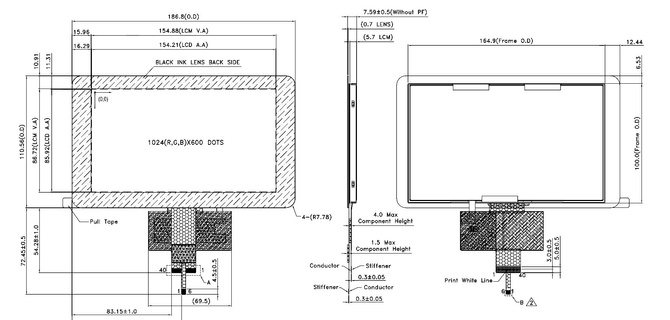

Powertip PH102600T013-ZHC12 - full view angled display

Powertip PH102600T013-ZHC12 - full view angled display

MatrixTFT
Screen diagonal (inch)7
Resolution (px)1024 x 600
Graphics display resolution standardWSVGA
Aspect ratio16:9
Touch panel typeCTP
Luminance in cd/m2850
Controller (IC)Sitronix ST5021-G3-1 + ST5651CB-G3-1
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH102600T013-ZHC12
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Resolution (px)Resolution (px)
1024 x 600
Graphics display resolution standardGraphics display resolution standard
WSVGA
Aspect ratio
16:9
Touch panel typeTouch panel type
CTP
Luminance in cd/m2Luminance in cd/m2
850
Controller (IC)Controller (IC)
Sitronix ST5021-G3-1 + ST5651CB-G3-1
Video interfaceVideo interface
LVDS
Viewing angles
80/80/80/80
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Lens thickness
0,7 mm
Touch panel controller (IC)Touch panel controller (IC)
Hycon HY4635
Touch panel interface
I2C
Search

Powertip PH102600T013-ZHC12

A 7" TFT full-view display, created by Powertip. The display has a 1024 x 600 WSVGA resolution and a LVDS interface. Brightness: 850. Operating temperature range -20...+70°C.
