Powertip PH102600T013-ZBA - HDMI display
MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWSVGA
Resolution (px)1024 x 600
Touch panel typeNone
Luminance in cd/m2800
Controller (IC)ST5021-G3-1 + ST5651CB-G3-1
Video interfaceHDMIDetails
Parametry
Find similar products
Brand
Symbol
PH102600T013-ZBA
Matrix
TFT
Screen diagonal (inch)
7
Graphics display resolution standard
WSVGA
Resolution (px)
1024 x 600
Aspect ratio
16:9
Touch panel type
None
Luminance in cd/m2
800
Controller (IC)
ST5021-G3-1 + ST5651CB-G3-1
Video interface
HDMI
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
5V
Powertip PH102600T013-ZBA
A 7" TFT full viewing angle display, created by Powertip. The display has a 1024 x 600 WSVGA resolution and a HDMI interface. Brightness: 800. Operating temperature range -20...+70°C.

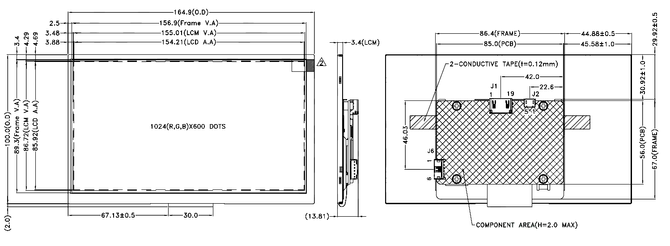

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
