Powertip PH102600T007-IAA01 - TFT display
Details
Parametry
Find similar products
Brand
Symbol
PH102600T007-IAA01
Producer code
5900000824192
Matrix
TFT
Graphics display resolution standard
WSVGA
Aspect ratio
17:10
Screen diagonal (inch)
10.1
Video interface
LVDS
Touch panel type
None
Resolution (px)
1024 x 600
Viewing angles
60/70/70/70
Luminance in cd/m2
450
Controller (IC)
Brak
Viewing direction
6H
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH102600T007-IAA01
A 10.1" TFT display created by Powertip with 1024 x 600 WSVGA resolution, an LVDS interface. Brightness: 450. Operating temperature range -20...+70°C.

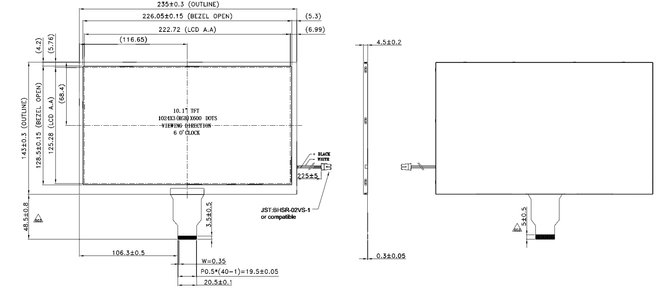

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
This product is NOT RECOMMENDED for new designs.
