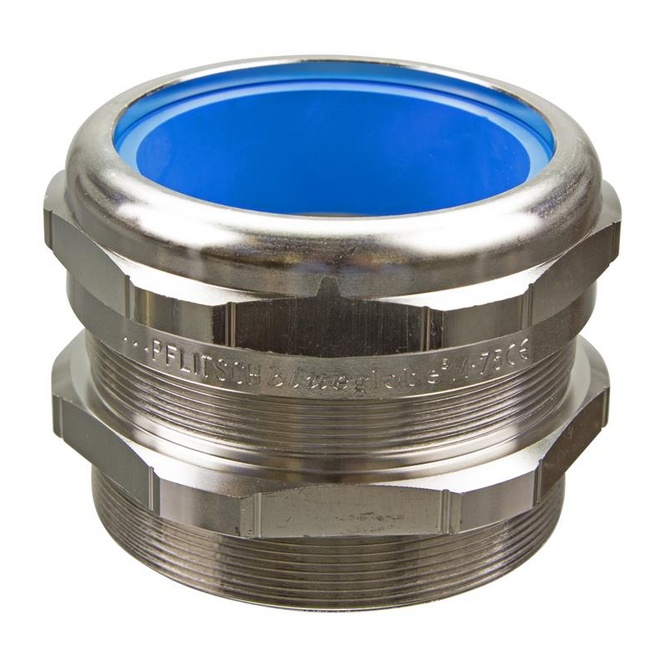

Pflitsch bg 275ms - M75 cable gland
Pflitsch bg 275ms - M75 cable gland
Pflitsch bg 275ms - M75 cable gland
Pflitsch bg 275ms - M75 cable gland

Pflitsch bg 275ms - M75 cable gland

MaterialNickel-plated Brass
ThreadM75
Sealing range in millimeters54-65 mm
Thread length in millimeters15
Ingress ProtectionIP66IP69
Thread
Application features
Size
uniwersalny
excl. VAT
81,30 €
gross
Sold by:5pcs.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Catalogue sheet - bg 275ms
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 275ms
Producer code
5900000640051
Series
blueglobe - brass
MaterialMaterial
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M75
Sealing range in millimetersSealing range in millimeters
54-65 mm
Thread length in millimetersThread length in millimeters
15
Product height in millimetresProduct height in millimetres
62
Product width in millimetersProduct width in millimeters
87
Ingress ProtectionIngress Protection
IP66
IP69
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
Search

Pflitsch bg 275ms

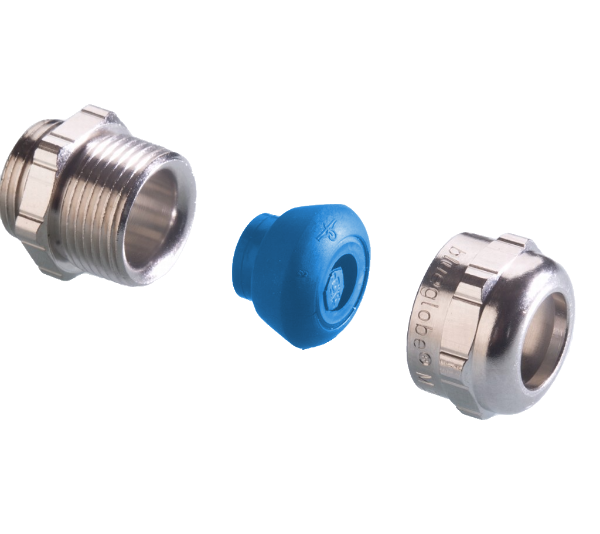

Bg 275ms is a brass cable gland from the Pflitsch blueglobe series. The gland provides gentle relief over a large area, good resistance to vibrations and a wide range of seals. The component is easy to identify. It has an M75 thread, a sealing range of 54-65 mm, a sealing insert made of TPE material and a ingress protection rating of IP68 (up to 15 bar), IP69. Operaring temperature range of the cable gland reaches -40 ... +130 degrees Celsius.
