Pflitsch bg 250ms - cable gland
Pflitsch bg 250ms - cable gland
Pflitsch bg 250ms - cable gland
Pflitsch bg 250ms - cable gland

Pflitsch bg 250ms - cable gland

MaterialNickel-plated brass
ThreadM50
Sealing range in millimeters31-42 mm
Ingress ProtectionIP66IP69
Thread
Special features
Size
uniwersalny
excl. VAT
70,66 zł
gross
Sold by:50pcs.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Catalogue sheet - bg 250ms
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 250ms
Producer code
5900000640037
MaterialMaterial
Nickel-plated brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M50
Sealing range in millimeters
31-42 mm
Thread length in millimeters
10
Product height in millimetresProduct height in millimetres
49
Product width in millimetersProduct width in millimeters
61
Ingress ProtectionIngress Protection
IP66
IP69
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
Straight / Angular
Straight
Search

Pflitsch bg 250ms

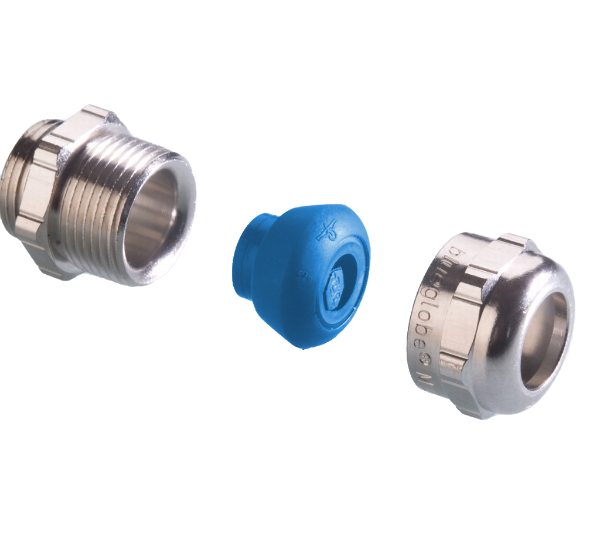

Bg 250ms is a brass cable gland from the Pflitsch blueglobe series. The gland provides gentle relief over a large area, good resistance to vibrations and a wide range of seals. The component is easy to identify. It has an M50 thread, a sealing range of 31-42 mm, a sealing insert made of TPE material, a ingress protection rating of IP68 (up to 15 bar), IP69 and UL certificate. Operaring temperature range of the cable gland reaches -40 ... +130 degrees Celsius.
