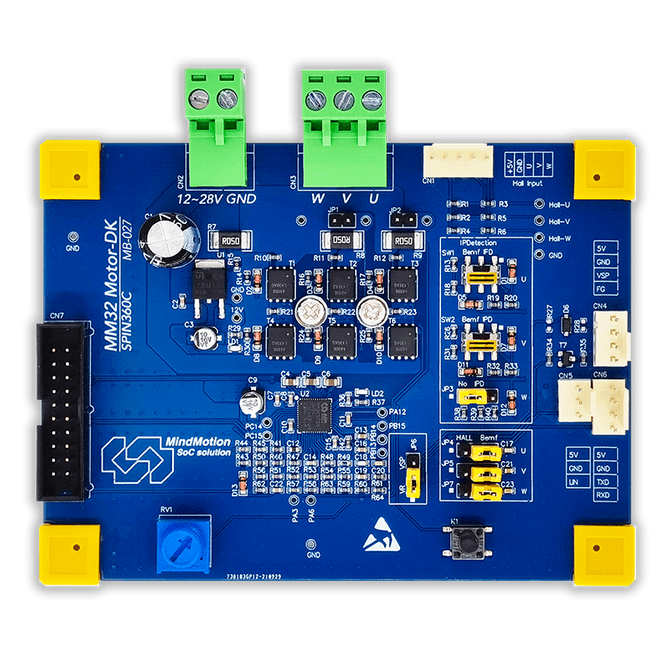

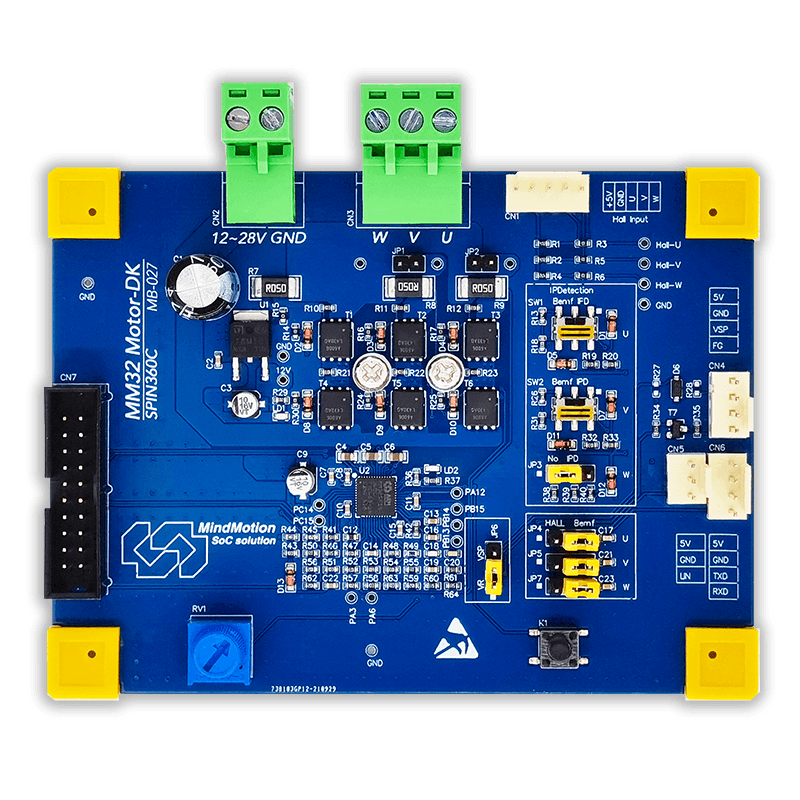

MindMotion Motor-DK-SPIN360C

Motor-DK-SPIN360C is a development kit from MindMotion, consisting of a Motor-DK board and a high-performance 32-bit MM32SPIN360C microcontroller with built-in high-speed memory, a wide range of extended I/O ports and peripherals.

On-board resources:

• Arm Cortex-M0 core
• Input voltage range: 12V~18V
• Uses four 60V/40A N-MOS tube
• Uses three built-in GBW 6MHz high-speed operation amplifiers
• MCU is powered by 5V
• Supports Hall/no Hall, square wave/sine wave drive
• Supports 1/2 Shunt R three-phase current sampling
• BEMF voltage feedback using ADC sampling
• Supports DC Bus voltage and total current measurement
• Uses MCU built-in comparator as over-current protection
• Has potentiometer speed control, LED and other functions
