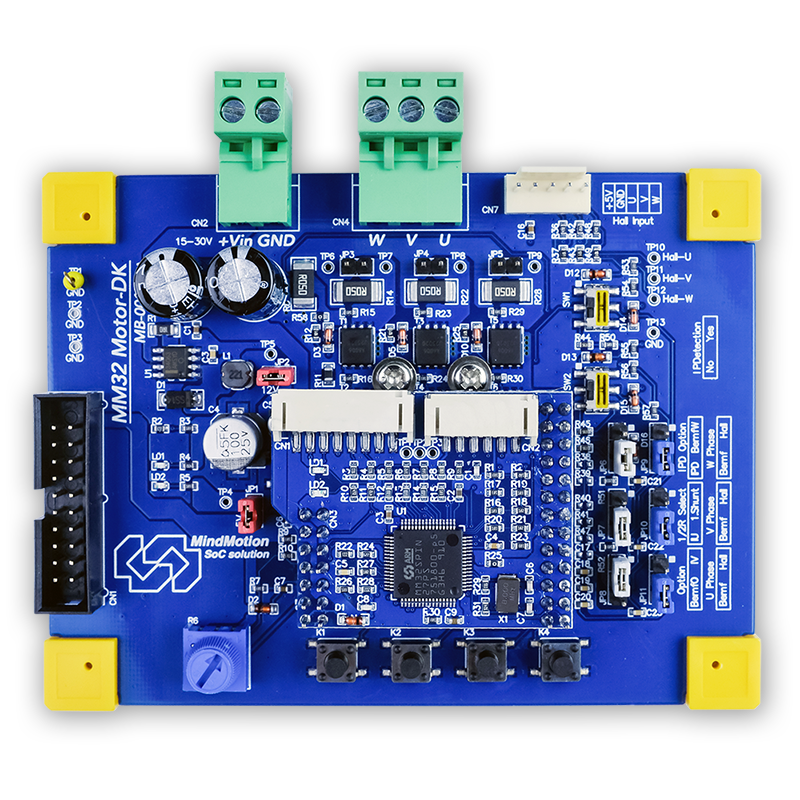

MindMotion Motor-DK-SPIN06 - evaluation board
Details
Parametry
Find similar products
Brand
Symbol
Motor-DK-SPIN06
Series
Processor
Arm Cortex-M0
CPU clocking (max)
72 MHz
Form factor
LQFP48
Size
7x7 mm
FLASH memory
64 KB
SRAM memory
16 KB
Temperature range
-40...+85°C
Voltage
2,0 - 5,5V
Certificate
RoHS
REACH
GPIO
39
Aplications
Cooling fans
Pumps
E-bikes
Electric scooter
Power tools
Vacuum cleaners
Drones
Refrigerator
Air-conditioning
Washing machines
Robots
Servo-motors
Massage guns
Digital cameras
Industrial Variable-frequency Drive
Number of pins
48
MindMotion Motor-DK-SPIN06
Motor-DK-SPIN06 is a development kit from MindMotion, consisting of a Motor-DK board and a high-performance 32-bit MM32SPIN06PF microcontroller with built-in high-speed memory, a wide range of extended I/O ports and peripherals.
- Arm Cortex-M0 core
- Input voltage range: 12V~30V
- Uses 60V/40A N-MOS tube
- Uses four built-in (MM32SPIN2x)/External (MM32SPIN06) GBW 6MHz high-speed operation amplifiers
- MCU is powered by 5V
- Support 48/64 Pin MM32SPIN series MCU
- Support no Hall, square wave/sine wave drive
- Support 1/2/3 Shunt R three-phase current sampling
- Support BEMF voltage feedback
- Support DC Bus voltage and total current measurement
- Uses MCU built-in analog comparator as over-current protection
On-board resources:
