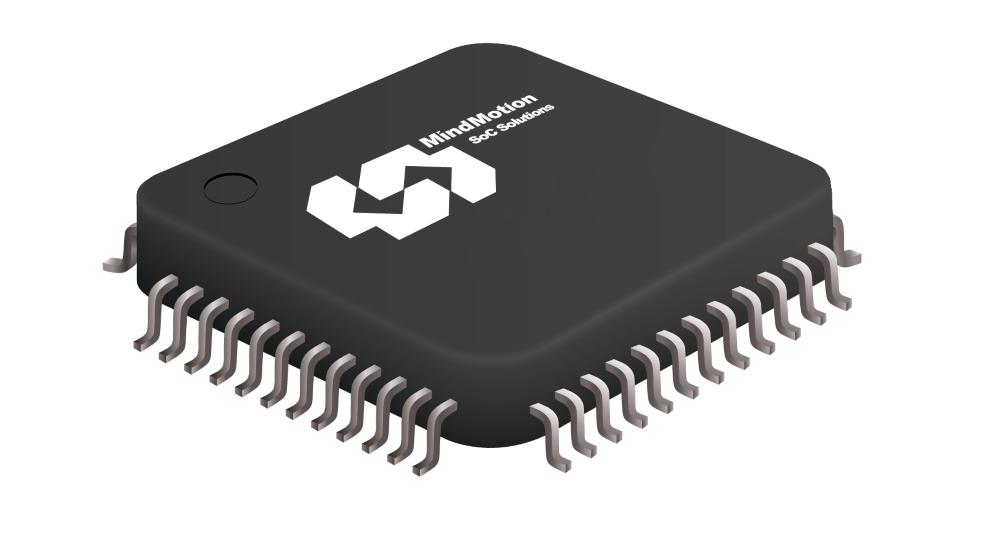

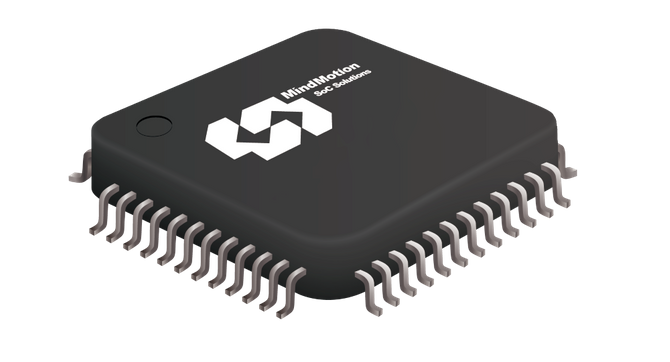

MindMotion MM32W062PFB

MM32W062PFB is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 48MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals. Integrated with an ultra-low-power and single-mode Bluetooth module, this device adopts 2.4GHz ISM band frequency, 2MHz channel spacing and is compliant with Bluetooth specifications.

• 64KB Flash, 8KB SRAM
• One 12-bit ADC and two comparators
• One 16-bit general-purpose timer, one 32-bit general-purpose timer, one PWM advanced timer and three 16-bit basic timers
• Interfaces: 1x I2C, 1x SPI, 2x UART, 1x USB, 1x CAN
• Working voltage: 2.0V~5.5V
• Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
• Multiple sets of power-saving modes make possible the design of low-power applications
