Brand
Symbol
MM32SPIN580C
Producer code
5900000828275
Series
Processor
Arm Cortex-M0
CPU clocking (max)
96 MHz
Form factor
QFN48
Size
6x6 mm
FLASH memory
128 KB
SRAM memory
8 KB
ADC (3Msps, 12bit)
2, 16ch
ACMP
3
OpAmp
3
Number of pins
48
GPIO
26
SPI interfaces
2
UART interfaces
3
I2C interfaces
1
GP TMR
5
Advanced TMR
2
Voltage
200V
Temperature range
-40...+105°C

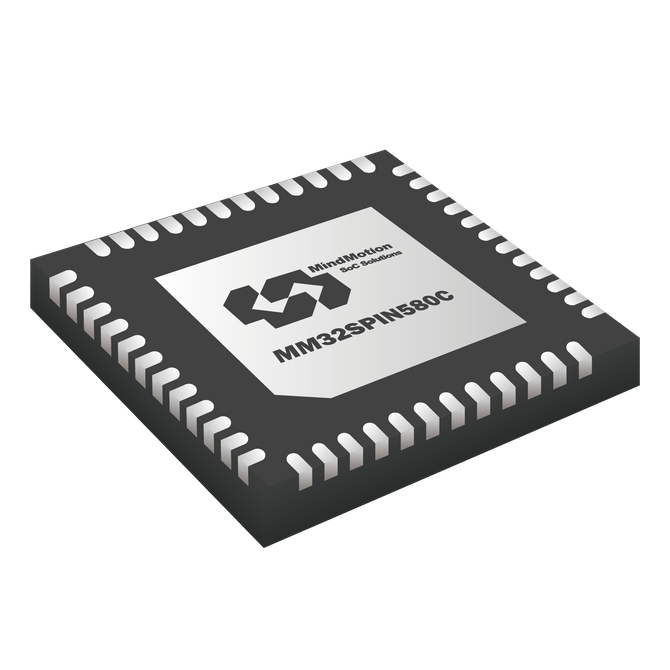

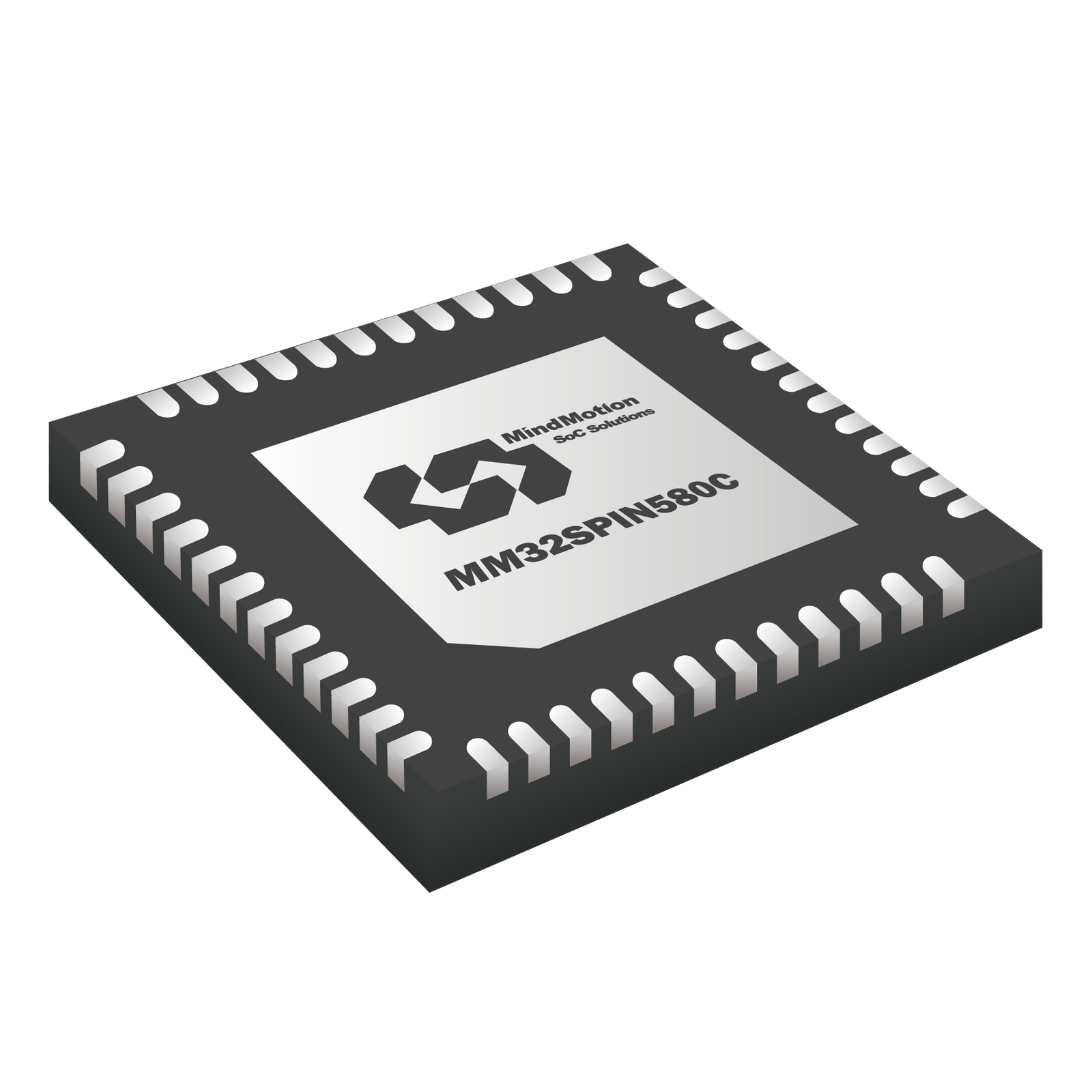

MindMotion MM32SPIN580C
MM32SPIN580C is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 96MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- 128KB Flash, 8KB SRAM
- Includes two 12-bit ADC, with sampling speed up to 3Msps, three operation amplifiers and three comparators for motor applications
- Five general-purpose timers and two PWM advanced timers for motor control
- Interfaces: 1x I2C, 2x SPI, 3x UART
- The working voltage of the pre-driver reaches up to 200V
- Working temperature range (ambient temperature): -40℃ to +105℃ industrial level
