Brand
Symbol
MM32SPIN360C
Producer code
5900000828497
Series
Processor
Arm Cortex-M0
CPU clocking (max)
96 MHz
Form factor
QFN48
Size
6x6 mm
FLASH memory
128 KB
SRAM memory
12 KB
ADC (1Msps, 12bit)
16ch
ACMP
3
OpAmp
3
Number of pins
48
GPIO
29
SPI interfaces
1
UART interfaces
2
I2C interfaces
1
GP TMR
5
Advanced TMR
2
Voltage
60V
Temperature range
-40...+85°C

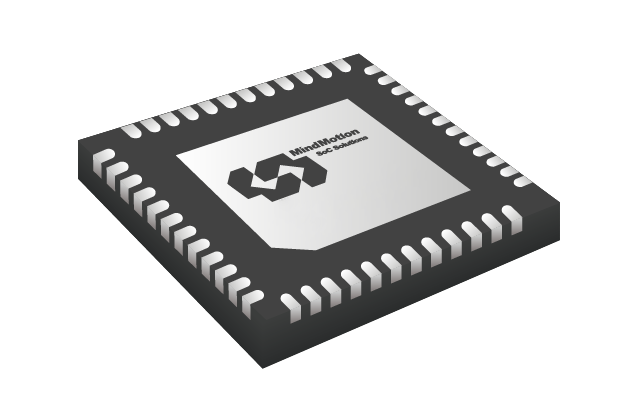

MindMotion MM32SPIN360C
MM32SPIN360C is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 96MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- 128KB Flash, 12KB SRAM
- Includes 12-bit ADC, with sampling speed up to 1Msps, three comparators, and three operation amplifiers for motor applications
- Five general-purpose timers and two PWM advanced timers for motor control
- Interfaces: 1x I2C, 1x SPI, 2x UART
- The working voltage of the pre-driver reaches up to 60V
- Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
