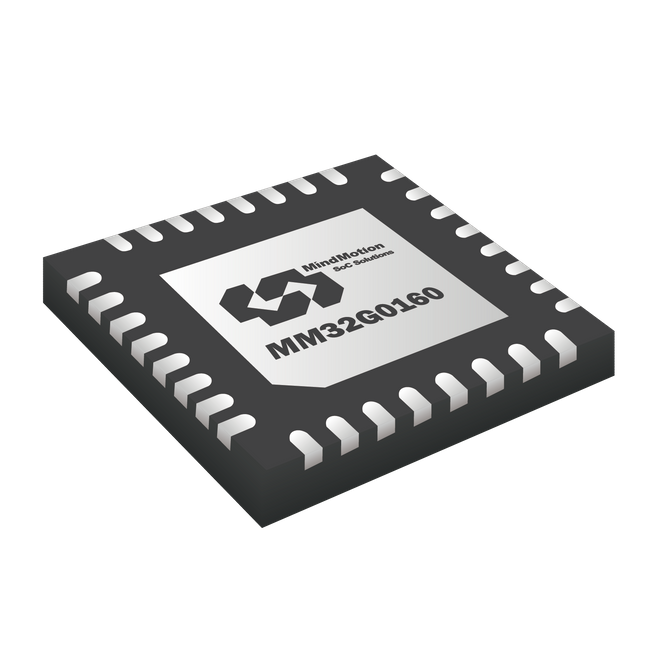

MindMotion MM32G0163D4QV - 32-bit microcontroler
Details
Parametry
Find similar products
Brand
Symbol
MM32G0163D4QV
Producer code
5900000827339
Series
Processor
Arm Cortex-M0
CPU clocking (max)
72 MHz
Form factor
QFN32
Size
5x5 mm
FLASH memory
128 KB
SRAM memory
16 KB
ADC (1Msps, 12bit)
13ch
ACMP
2
Number of pins
32
GPIO
27
USB interfaces
1x 2.0
CAN interface
1x 2.0B
SPI interfaces
2
UART interfaces
4
I2C interfaces
1
GP TMR
5
Advanced TMR
1
Voltage
2,0 - 5,5V
Temperature range
-40...+105°C
MindMotion MM32G0163D4QV
MM32G0163D4QV is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 72MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- One 12-bit ADC and two analog comparators
- One 16-bit advanced timer, one 32-bit general-purpose timer, one 16-bit general-purpose timer, three 16-bit basic timers and one 16-bit low-power timer
- Interfaces: 1x I2C, 2x SPI, 4x UART, 1x USB, 1x CAN
- Working voltage: 2.0V~5.5V
- Working temperature range (ambient temperature): -40℃ to +105℃ industrial level
