MindMotion MM32F3273E8P - 32-bit microcontroler
ProcessorArm Cortex-M3
CPU clocking (max)120 MHz
Form factorLQFP100
FLASH memory256 KB
SRAM memory128 KBDetails
Parametry
Find similar products
Brand
Symbol
MM32F3273E8P
Producer code
5900000826943
Series
Processor
Arm Cortex-M3
CPU clocking (max)
120 MHz
Form factor
LQFP100
Size
14x14 mm
FLASH memory
256 KB
SRAM memory
128 KB
ADC (1Msps, 12bit)
3, 16ch
Number of pins
100
GPIO
84
ACMP
2
DAC (12bit)
2
USB interfaces
1x 2.0
CAN interface
1x 2.0B
SPI interfaces
2
UART interfaces
8
I2C interfaces
2
GP TMR
6
Advanced TMR
2
Voltage
2,0 - 5,5V
Temperature range
-40...+85°C

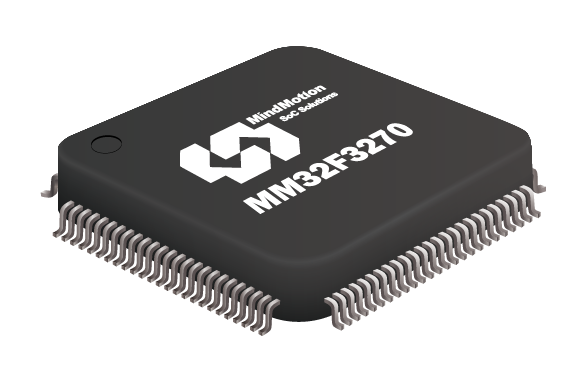

MindMotion MM32F3273E8P
MM32F3273E8P is a 32-bit microcontroller based on the high-performance Arm® Cortex-M3 core, operating at a frequency of up to 120MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- 256KB Flash, 128KB SRAM
- Three 12-bit ADCs, two 12-bit DACs and two comparators
- Two 16-bit general-purpose timers, two 32-bit general-purpose timers, two 16-bit basic timers and two 16-bit advanced timers
- Interfaces: 2x I2C, 2x SPI, 8x UART, 1x USB, 1x CAN
- Working voltage: 2.0V~5.5V
- Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
- Multiple sets of power-saving modes make possible the design of low-power applications
