MindMotion MM32F0273D7P - 32-bit microcontroler
Details
Parametry
Find similar products
Brand
Symbol
MM32F0273D7P
Producer code
5900000796604
Series
Processor
Arm Cortex-M0
CPU clocking (max)
96 MHz
Form factor
LQFP64
Size
10x10 mm
FLASH memory
128 KB
SRAM memory
16 KB
ADC (1Msps, 12bit)
14ch
ACMP
2
Number of pins
64
GPIO
54
USB interfaces
1x 2.0
CAN interface
1x 2.0B
SPI interfaces
2
UART interfaces
4
I2C interfaces
2
GP TMR
6
Advanced TMR
1
Voltage
2,0 - 5,5V
Temperature range
-40...+85°C

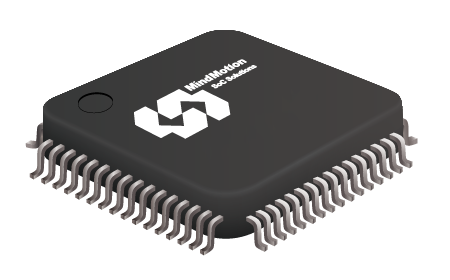

MindMotion MM32F0273D7P
MM32F0273D7P is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 96MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- 128KB Flash, 16KB SRAM
- One 12-bit ADC, one 12-bit DAC and two comparators
- One 16-bit general-purpose timer. One 32-bit general-purpose timer, four 16-bit basic timers, one 16-bit advanced timer, one 16-bit low-power timer and one RTC timer
- Interfaces: 2x I2C, 2x SPI, 4x UART, 1x USB, 1x CAN
- Working voltage: 2.0V~5.5V
- Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
- Multiple sets of power-saving modes make possible the design of low-power applications
