MindMotion MM32F0162D7P - 32-bit microcontroler
Details
Parametry
Find similar products
Brand
Symbol
MM32F0162D7P
Producer code
5900000826769
Series
Processor
Arm Cortex-M0
CPU clocking (max)
96 MHz
Form factor
LQFP64
Size
10x10 mm
FLASH memory
128 KB
SRAM memory
16 KB
ADC (1Msps, 12bit)
14ch
ACMP
2
Number of pins
64
GPIO
57
USB interfaces
1x 2.0
SPI interfaces
2
UART interfaces
4
I2C interfaces
1
GP TMR
5
Advanced TMR
1
Voltage
2,0 - 5,5V
Temperature range
-40...+85°C
MindMotion MM32F0162D7P

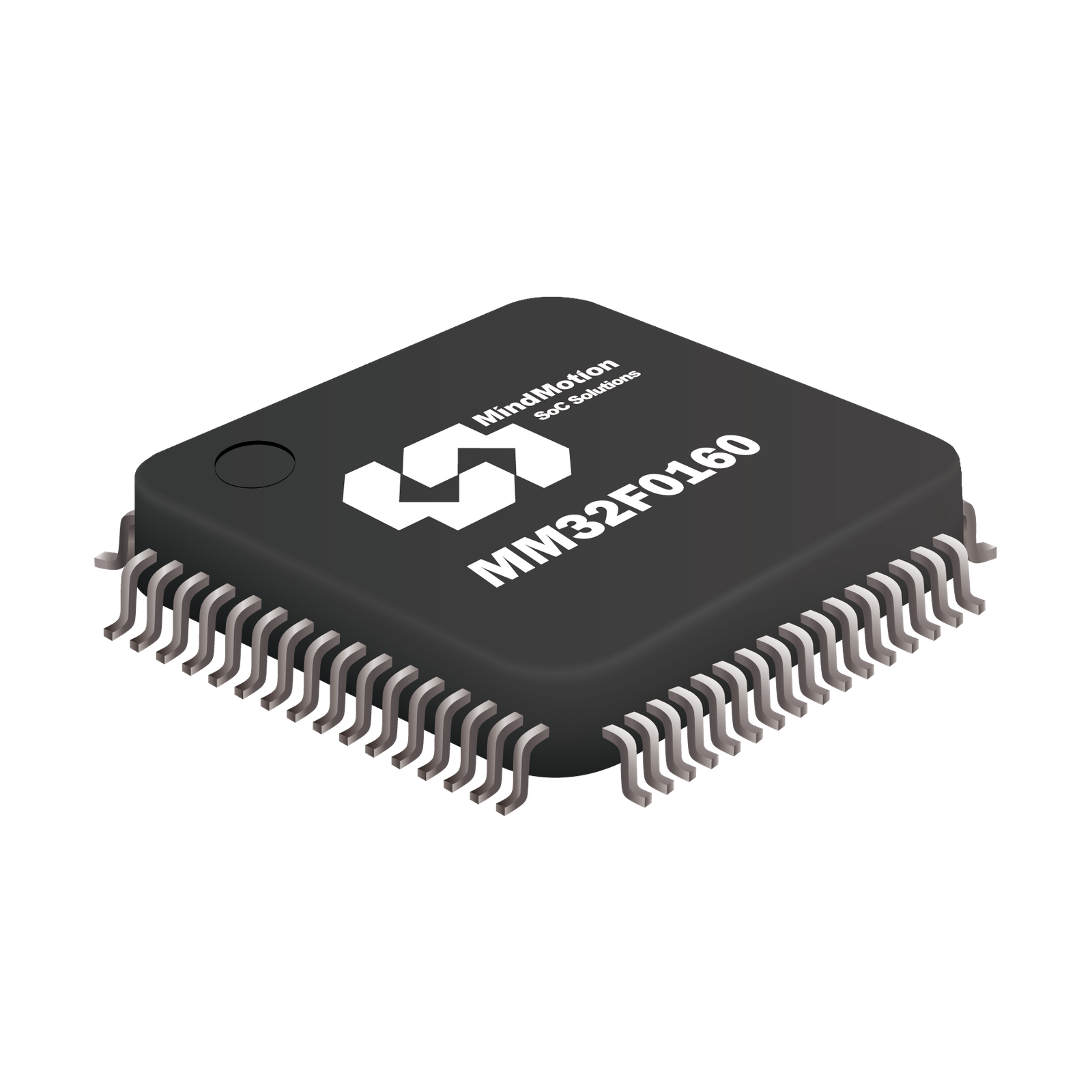

MM32F0162D7P is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 96MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- 128KB Flash, 16KB SRAM
- One 16-bit advanced timer, one 16-bit and one 32-bit general-purpose timer, three 16-bit basic timers and one low power timer
- Interfaces: 1x I2C, 2x SPI, 4x UART, 1x USB
- Working voltage: 2.0V~5.5V
- Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
