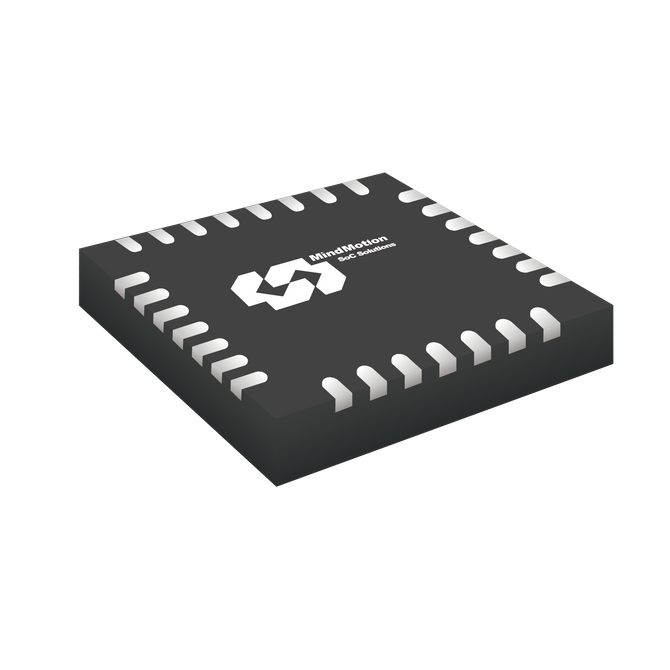

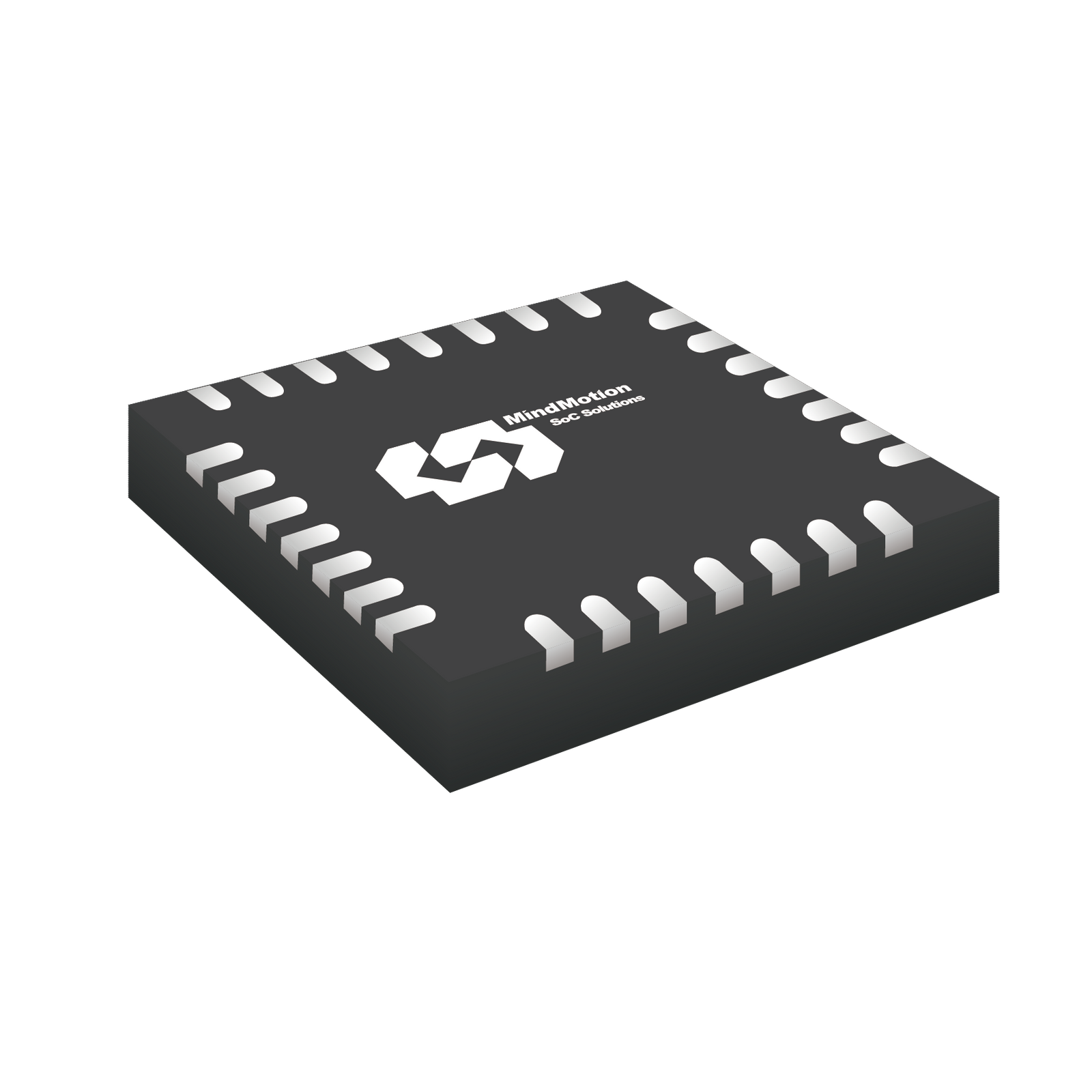

MindMotion MM32F0141C3N

MM32F0141C3N is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 72MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.

• 64KB Flash, 8KB SRAM
• One 12-bit ADC
• One 16-bit general-purpose timer, one 32-bit general-purpose timer, three 16-bit basic timers and one 16-bit advanced timer
• Interfaces: 1x I2C, 1x SPI, 3x UART
• Working voltage: 2.0V~5.5V
• High reliability: support up to ±6000V HBM ESD, ±2000V CDM ESD and ±300mA withstanding current for high-temperature latch-up
• Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
• Multiple sets of power-saving modes make possible the design of low-power applications
• Pin-to-pin compatible with MM32F031
