MindMotion Mini-F3270 - evaluation board

MindMotion Mini-F3270 - evaluation board

ProcessorArm Cortex-M3
CPU clocking (max)120 MHz
Form factorLQFP48
FLASH memory512 KB
SRAM memory128 KB
Próbkitak
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Order a sample
Compare
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
MindMotion
Symbol
Mini-F3270
Producer code
5900000825700
Series
MiniBoard
ProcessorProcessor
Arm Cortex-M3
CPU clocking (max)CPU clocking (max)
120 MHz
Form factorForm factor
LQFP48
SizeSize
7x7 mm
FLASH memoryFLASH memory
512 KB
SRAM memorySRAM memory
128 KB
Temperature rangeTemperature range
-40...+85°C
VoltageVoltage
2,0 - 5,5V
CertificateCertificate
RoHS
REACH
GPIOGPIO
38
Aplications
Industrial controls
Home appliances
Fingerprint recognition
Printers
Smoke alarms
Elevators
Circuit breakers
Power supply
Energy monitoring and control
Lighting control
GPS trackers
Telecommunication modules
Number of pinsNumber of pins
48
Search

MindMotion Mini-F3270

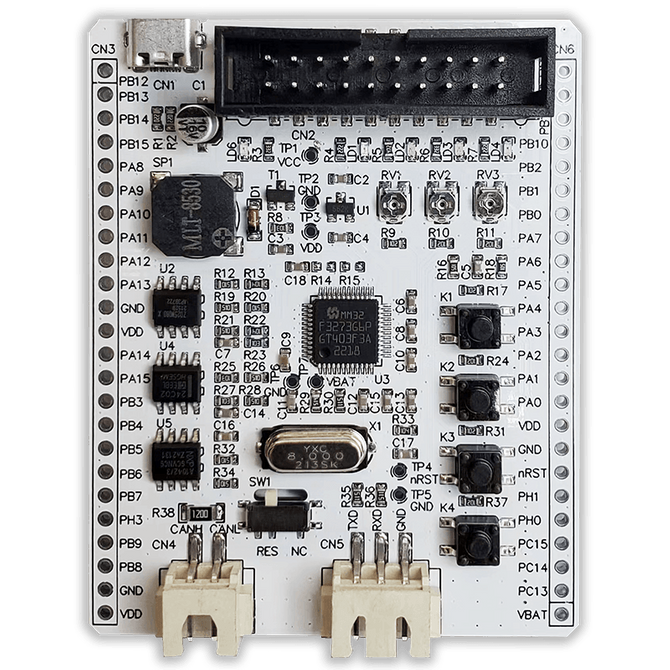

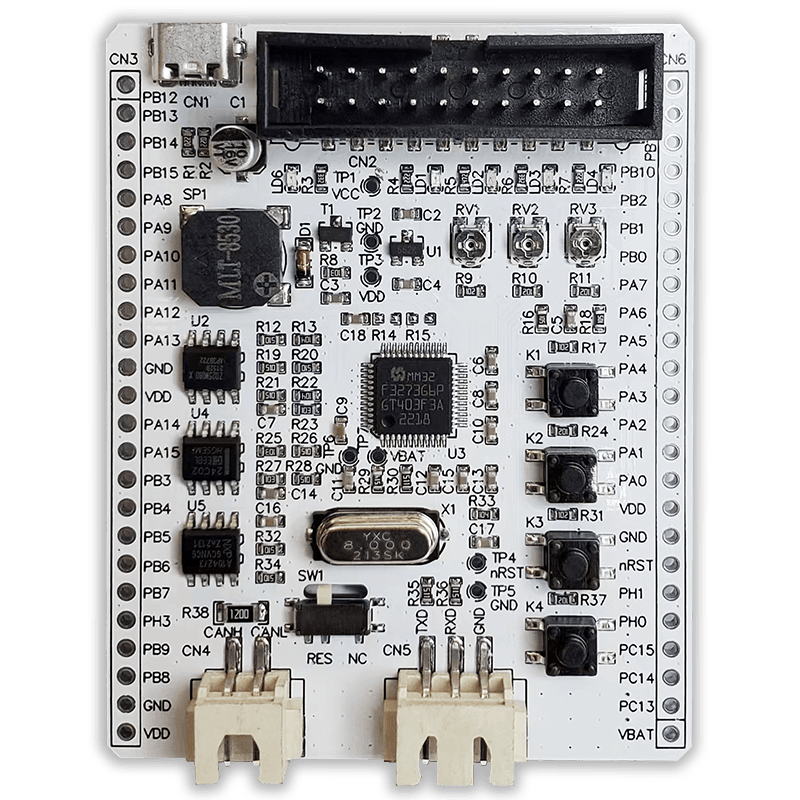

Mini-F3270 is a development kit from MindMotion, consisting of a MiniBoard and a high-performance 32-bit MM32F3273G6P microcontroller with built-in high-speed memory, a wide range of extended I/O ports and peripherals.

    On-board resources:

  • Arm Cortex-M3 core
  • On-board MM32F3273G6P (LQFP48)
  • Extended UART
  • Micro-USB interface
  • 4 x Key
  • 4 x LED
  • 1 x Switch for function selection
  • PWM Speaker
