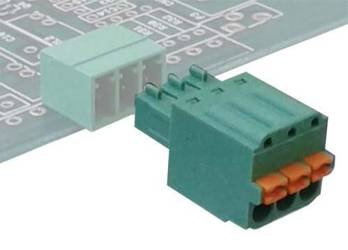

Euroclamp SHM03-3,81-P - screwless plug-in connector

Euroclamp SHM03-3,81-P - screwless plug-in connector

Number of pins3
Pitch (in milimetres)3,81
GenderMale
Contact size / Cable diameter16 AWG / 1.3 mm²
Rated current8A
Rated voltage160V
Size
uniwersalny
excl. VAT
1,96 zł
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Euroclamp SHM03-3,81-P - screwless plug-in connector
Euroclamp SHM03-3,81-P - screwless plug-in connector
uniwersalny
Safe shopping
Compare
Product Data Sheet - SHM__-3_81-P
STEP 3D model - SHM03-3,81-P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Euroclamp
Symbol
SHM03-3,81-P
Producer code
5900000622637
Series
SHM
Number of pinsNumber of pins
3
Pitch (in milimetres)
3,81
Gender
Male
Contact size / Cable diameter
16 AWG / 1.3 mm²
Rated current
8A
Rated voltage
160V
Impulse voltage
2,5kV
Temperature rangeTemperature range
-40...+130°C
Flammability - UL Standard
UL 94 V-0
ColourColour
RAL 6032 - Zielony
Search

Euroclamp SHM03-3,81-P

SHM03-3,81-P is a male 3-pole screwless plug-in connector, with a 3,81 mm pitch, made by Euroclamp. The product has wire cross-section of 1.5 mm² / 16 AWG. Can withstand a current of 8A, and 160V of maximum voltage, with 2,5kV withstanded impulse voltage. Operational temperature range: -40...+130°C.
