Euroclamp PV05-5-H-P - male terminal block

Euroclamp PV05-5-H-P - male terminal block

Number of pins5
Pitch (in milimetres)5
GenderMale
Rated current16A
Rated voltage250V
Size
uniwersalny
excl. VAT
0,54 zł
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Euroclamp PV05-5-H-P - male terminal block
Euroclamp PV05-5-H-P - male terminal block
uniwersalny
Safe shopping
Compare
Product data sheet - PV05-5-H-P
STEP 3D model - PV05-5-H-P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Euroclamp
Symbol
PV05-5-H-P
Producer code
5900000560052
Number of pinsNumber of pins
5
Pitch (in milimetres)
5
Gender
Male
Rated current
16A
Rated voltage
250V
Impulse voltage
4kV
Temperature rangeTemperature range
-40...+130°C
Flammability - UL Standard
UL 94 V-0
ColourColour
RAL 6032 - Zielony
Search

Euroclamp PV05-5-H-P

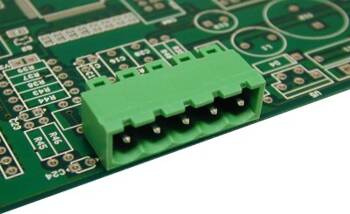

PV05-5-H-P is a 5-pole modular terminal block, with a 5 pitch, made by Euroclamp. Can withstand a current of 16A, and 250V of maximum voltage. Operational temperature range: -40...+130°C. Catalog color according to RAL 6032 green. Image for preview purposes only. The product may differ from the image shown.
