Euroclamp MV27D1-15-V - terminal block

Euroclamp MV27D1-15-V - terminal block

Rated current24A
Contact size / Cable diameter14 AWG / 2,5 mm²
Rated voltage750V
Number of pins
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product data sheet - MV27D1-15-V
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Euroclamp
Symbol
MV27D1-15-V
Number of pinsNumber of pins
1
Pitch (in milimetres)
15
Rated current
24A
Contact size / Cable diameter
14 AWG / 2,5 mm²
Rated voltage
750V
Impulse voltage
3kV
Temperature rangeTemperature range
-40...+130°C
ColourColour
RAL 6032 - Zielony
Flammability - UL Standard
UL 94 V-0
Search

Euroclamp MV27D1-15-V

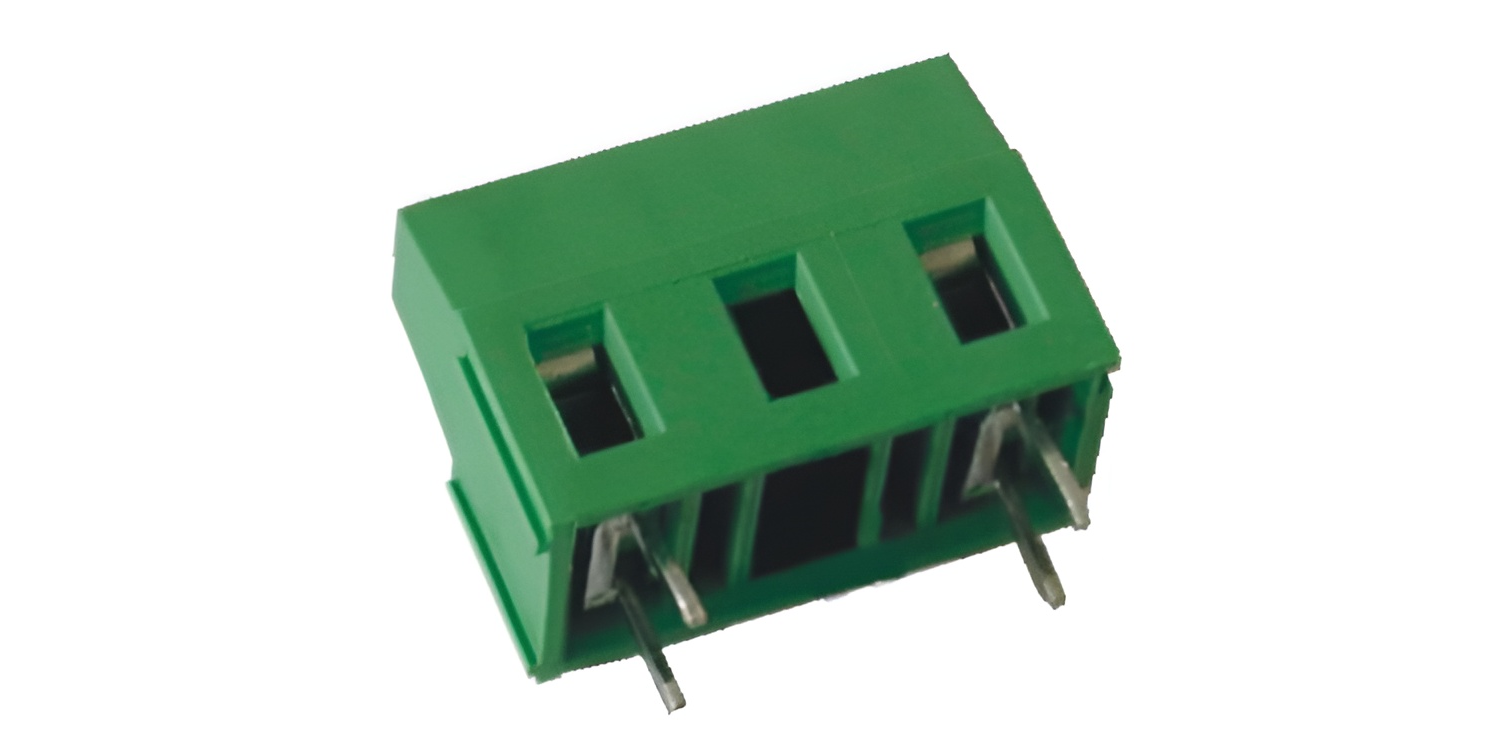

MV27D1-15-V is a 1-pole modular terminal block, with a 15 mm pitch, made by Euroclamp. The product has wire cross-section of 2,5 mm² / 14 AWG. Can withstand a current of 24A, and 750V of maximum voltage. Operational temperature range: -40...+130°C. Catalog color according to RAL 6032 green. Image for preview purposes only. The product may differ from the image shown.
