Espressif ESP32-S3-DevKitM-1U-N8 - development board
Details
Parametry
Find similar products
Brand
Symbol
ESP32-S3-DevKitM-1U-N8
Producer code
5900000807447
Chip
ESP32-S3FN8
Module
ESP32-S3-MINI-1U
Technology
WiFi 4
BT 5.0
Temperature range
-40...+85°C
Product width in millimeters
25.4
Product length in millimeters
62.74
FLASH memory
8 MB
SRAM memory
512 KB
ROM memory
384 KB
SRAM in RTC memory
16 KB
Antenna type
IPEX
GPIO
39
Voltage
3,0 - 3,6V
Longevity
until 2033
Espressif ESP32-S3-DevKitM-1U-N8

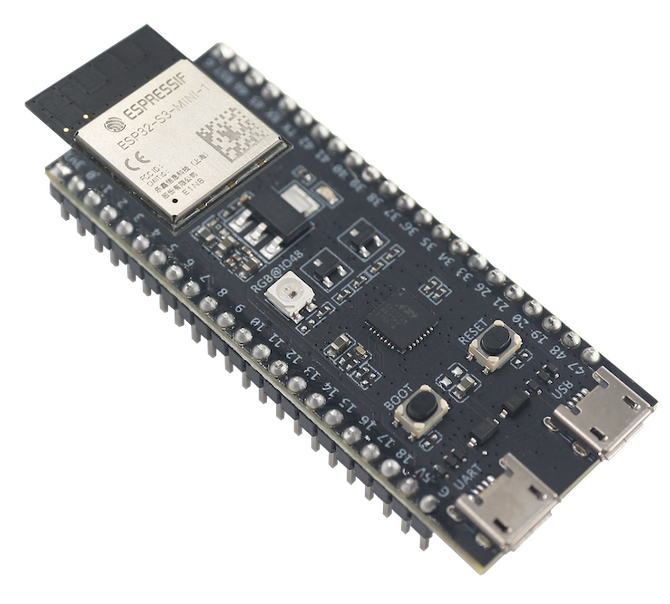

A developement board by Espressif Systems, with an ESP32-S3-MINI-1U module embedded, supporting WiFi 802.11 b/g/n, 2.4 GHz standards as well as Bluetooth 5.0, equipped with 39 configurable pins (GPIO) and an IPEX antenna.
The module can operate in temperature range of -40... +85°C, and it's power supply is 3.0 - 3.6.
