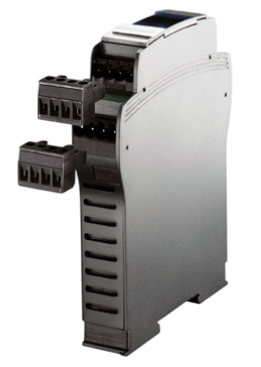

ERNI LDG-S2 - DIN rail enclosure

ERNI LDG-S2 - DIN rail enclosure

Number of pins16
Product width in millimeters22.5
MaterialTworzywo termoplastyczne
NormDIN EN 50022
VentilationYes
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Symbol
LDG-S2
Series
LDG-S
Number of pinsNumber of pins
16
Product length in millimetersProduct length in millimeters
100
Product width in millimetersProduct width in millimeters
22.5
Product height in millimetresProduct height in millimetres
122
MaterialMaterial
Tworzywo termoplastyczne
Ingress ProtectionIngress Protection
IP40
Flammability - UL Standard
UL 94 V-0
ColourColour
Black
NormNorm
DIN EN 50022
Temperature rangeTemperature range
-40...+85°C
VentilationVentilation
Yes
Search

ERNI LDG-S2

The LDG-S2 enclosure is a compact and versatile solution for DIN rail mounting, ideal for applications in industrial electronics, automation, and machinery. Its well-thought-out design allows for optimal use of space and easy integration of components. With the ability to connect up to 16 terminals, the LDG-S2 is ideal for systems requiring precise and reliable connections.


Key features of the LDG-S2:

  • Designed for 16 terminals: Supports up to 16 terminals (4 screw terminal blocks with 4 terminals each) or up to 16 pin contacts (4 PCB headers with 4 pin contacts each), providing flexibility in connection configuration. Versions with plug-in or screw terminals are available.
  • Compact width: With an installation width of 22.5 mm, the LDG-S2 minimizes the space occupied on the DIN rail while offering sufficient space for printed circuits.
  • Easy installation: The snap-in design of the two-piece base and top section and the integrated snap-in clip facilitate quick and easy installation on a DIN rail (in accordance with DIN EN 50 022).
  • Effective cooling: The base part with integrated ventilation slots ensures optimum heat dissipation. Closed versions (without ventilation slots) are also available on request.
  • High safety standards and materials: The enclosure is fully insulated, made of thermoplastic (UL 94 V-0 for the base and top, UL 94 V-1/V-2 for the cover), ensuring resistance to temperatures from -40°C to +85°C. It complies with IEC 60 664 and IEC 112 standards, offering IP40 protection.
  • Additional options: Transparent enclosure cover with label option and customizable colors and versions.

Dimensional specifications:

  • Length: 100 mm
  • Width: 22.5 mm
  • Height: 122 mm
