ERNI LDG-A 16 - DIN rail enclosure

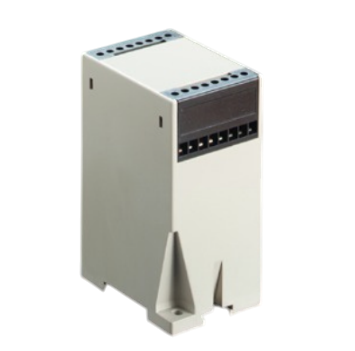

ERNI LDG-A 16 - DIN rail enclosure

Number of pins16
Product width in millimeters55
MaterialPolycarbonate
NormDIN 46277DIN EN 50022
VentilationOpcjonalna
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Catalogue sheet - ERNI LDG-A 16
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Symbol
LDG-A 16
Series
LDG-A
Number of pinsNumber of pins
16
Product length in millimetersProduct length in millimeters
75
Product width in millimetersProduct width in millimeters
55
Product height in millimetresProduct height in millimetres
110
MaterialMaterial
Polycarbonate
Ingress ProtectionIngress Protection
IP20
ColourColour
RAL 7032 - Szary
NormNorm
DIN 46277
DIN EN 50022
VentilationVentilation
Opcjonalna
Search

ERNI LDG-A 16

The ERNI LDG-A 16 is a housing from the popular LDG-A series, designed for applications requiring more connections than the 12 and 14 models, while maintaining compact dimensions. It is the ideal solution for systems that need up to 16 terminals, offering high space efficiency and ease of integration.


Key features of the LDG-A 16:

  • Designed for 16 terminals: Supports up to 16 screw terminals (8 on each side), with the option of using partially loaded terminal blocks with blind plugs for flexible connection configuration.
  • Optimal width: With a width of 55 mm, the LDG-A 16 offers more space for components and connections while remaining a convenient option for DIN rail mounting.
  • Easy installation: Retains all the advantages of the LDG-A series, including quick and easy installation thanks to the snap-in design, which allows components to be pre-assembled outside the enclosure.
  • Effective cooling: An optional base with ventilation holes provides better heat dissipation for electronic subassemblies with increased heat emission.
  • Versatile mounting: Standard DIN rail mounting (DIN 46277, DIN EN 50022) and wall mounting options ensure installation flexibility.
  • High safety standards: Fully insulated, with durable, vibration-resistant terminal screws and protection against accidental contact, it meets VDE standards for safe operation. Made of durable PC (polyester carbonate) materials, the housing ensures stability over a wide temperature range from -40°C to +110°C.

Dimensional specifications:

  • Length: 75 mm
  • Width: 55 mm
  • Height: 110 mm

Description Type Color Part Number
Base part w/o ventilation slots light grey 414124
Base part with ventilation slots light grey 024870
Cover light grey 014415
Cover transparent 014416
Cover black 014417
Terminal block housing narrow black 103031
Terminal block housing narrow blue 103033
Terminal block housing wide black 103032
Terminal block housing wide blue 103034
Terminal pin short 224076
Terminal pin long 224074
Clamp, not assembled 154562
Terminal block, fully loaded narrow black 914830
Terminal block, fully loaded wide black 914840
Blind plug black 103006
Frame insert for pluggable connectors Top cutout black 053869
Frame insert for pluggable connectors Bottom cutout black 053870
Blind insert black 053871
