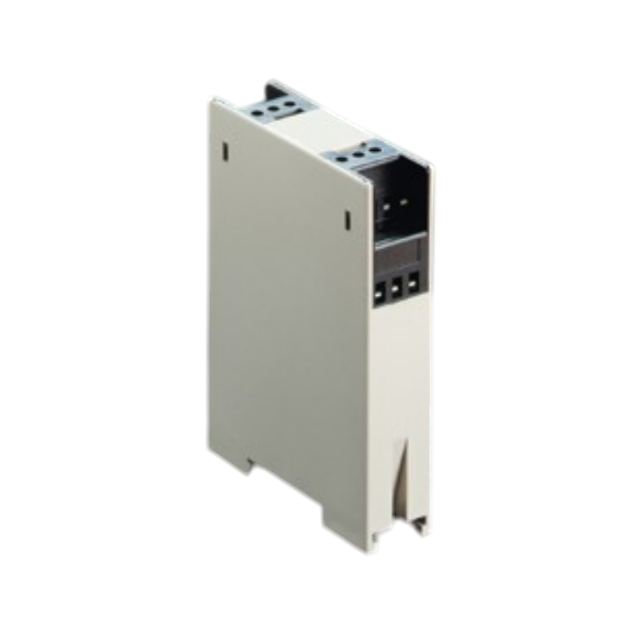

Key features of the LDG-A 12:

• Designed for 12 terminals: Supports up to 12 screw terminals (6 on each side), with the option of using partially loaded terminal blocks with blind plugs for flexible connection configuration.
• Compact dimensions: With a width of only 22.5 mm, the LDG-A 12 is ideal for tight installations.
• Easy installation: Retains all the advantages of the LDG-A series, including quick and easy installation thanks to its snap-in design, which allows components to be pre-assembled outside the housing.
• Height options: Available in two height variants (98.5 mm or 110 mm), allowing for optimal adaptation to the available space and internal PCB requirements.
• Effective cooling: An optional base with ventilation holes provides better heat dissipation for electronic subassemblies with increased heat emission.
• Versatile mounting: Standard DIN rail mounting (DIN 46277, DIN EN 50022) and wall mounting options ensure installation flexibility.
• High safety standards: Fully insulated, with durable, vibration-resistant terminal screws and protection against accidental contact, it meets VDE standards.
