Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)
Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)

Bopla RCPM 160 (41161009) - RegloCard-Plus enclosure with clip-on covering frame (166 x 161 x 71 mm)

Product length in millimeters166
Product width in millimeters71
Product height in millimetres161
MaterialABS
Ingress ProtectionIP40
ColourLight grey
Type of lidClip-on covering frame
Type of lid
Size
uniwersalny
excl. VAT
26,15 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
PDF drawing - 41161009
STEP 3D model - 41161009
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
41161009
Series
RegloCard-Plus / Combifront
Product length in millimetersProduct length in millimeters
166
Product width in millimetersProduct width in millimeters
71
Product height in millimetresProduct height in millimetres
161
MaterialMaterial
ABS
Ingress ProtectionIngress Protection
IP40
ColourColour
Light grey
Type of lid
Clip-on covering frame
Search

Bopla RCPM 160 (41161009)

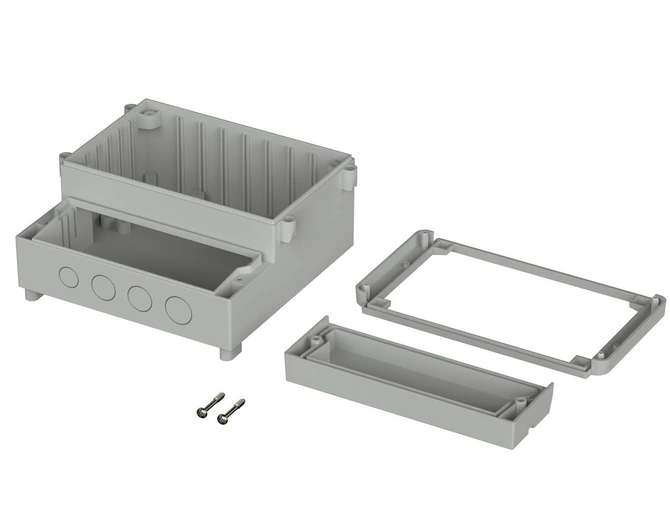

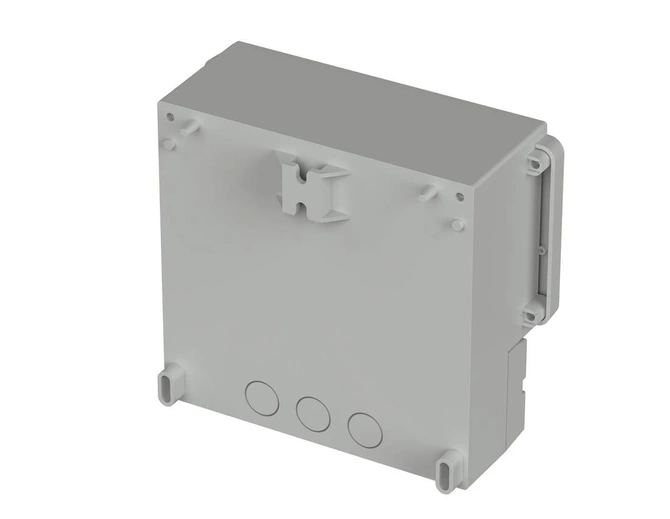

The L-shaped enclosure features a separately accessible clamping section, allowing for the connection of power or control wires via cable glands without needing to open the electronics mounting space. The clip-on covering frame snaps into the base of the enclosure. The clamping section includes metric (Pre-punchings: 1 x M 12, 2 x M 16, 1 x M 20). Enclosures without pre-punchings for cable glands and in non-standard catalog colors are available upon request.
