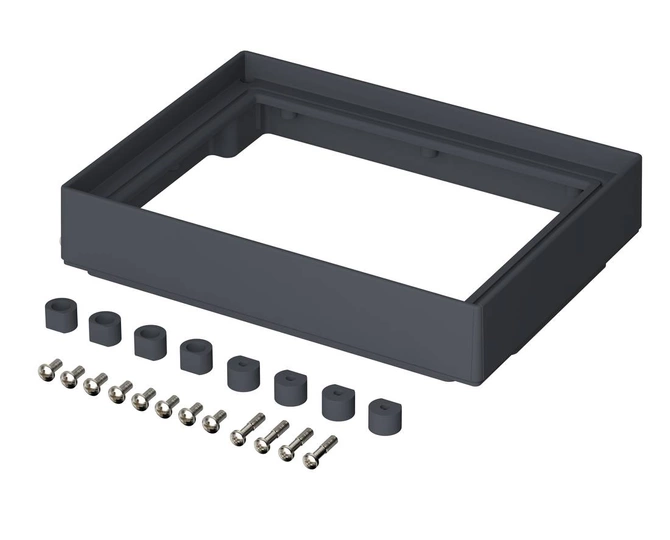

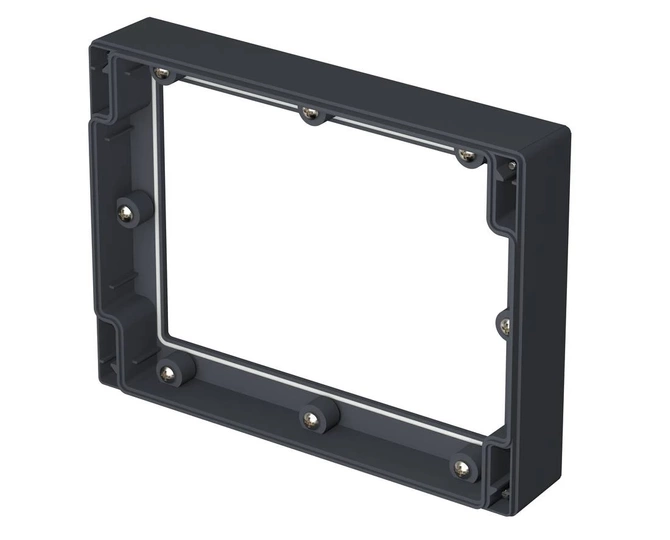

Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)
Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)
Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)
Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)
Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)
Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)

Bopla FO 2000 (19002200) - open front frame with seal for CombiCard 1000-3000 (184 x 138 x 33 mm)

Product length in millimeters184
Product width in millimeters138
Product height in millimetres33
MaterialABS
Ingress ProtectionIP40IP65
Gasket materialEPDM rubber
ColourRAL 7024 - Graphite grey
Size
uniwersalny
excl. VAT
77,56 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Drawing - 19002200
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
19002200
Series
CombiCard 1000-3000
Product length in millimetersProduct length in millimeters
184
Product width in millimetersProduct width in millimeters
138
Product height in millimetresProduct height in millimetres
33
MaterialMaterial
ABS
Ingress ProtectionIngress Protection
IP40
IP65
Gasket materialGasket material
EPDM rubber
ColourColour
RAL 7024 - Graphite grey
Search

Bopla FO 2000 (19002200)

Open front frame with seal for CombiCard 1000-3000 enclosures. The precisely installed EPDM seal ensures IP65 when using the FP…AI panel or IP40 when using the FP…AA panel. The cover is screwed to the base using the screws supplied in the set.

Please note that to connect the base with the rear cover and the front, it is necessary to use the appropriate connection element, the "tie bar set," designated as ZA 0xxx. For further guidance, refer to the "ZA 0xxx Connection Element Selection Manual".
