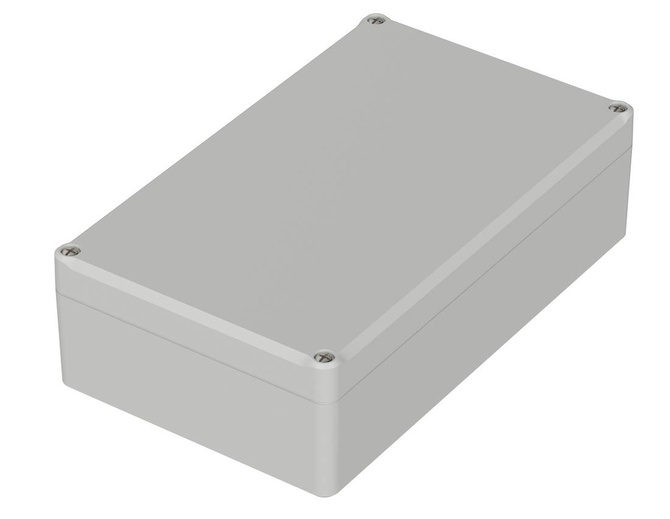

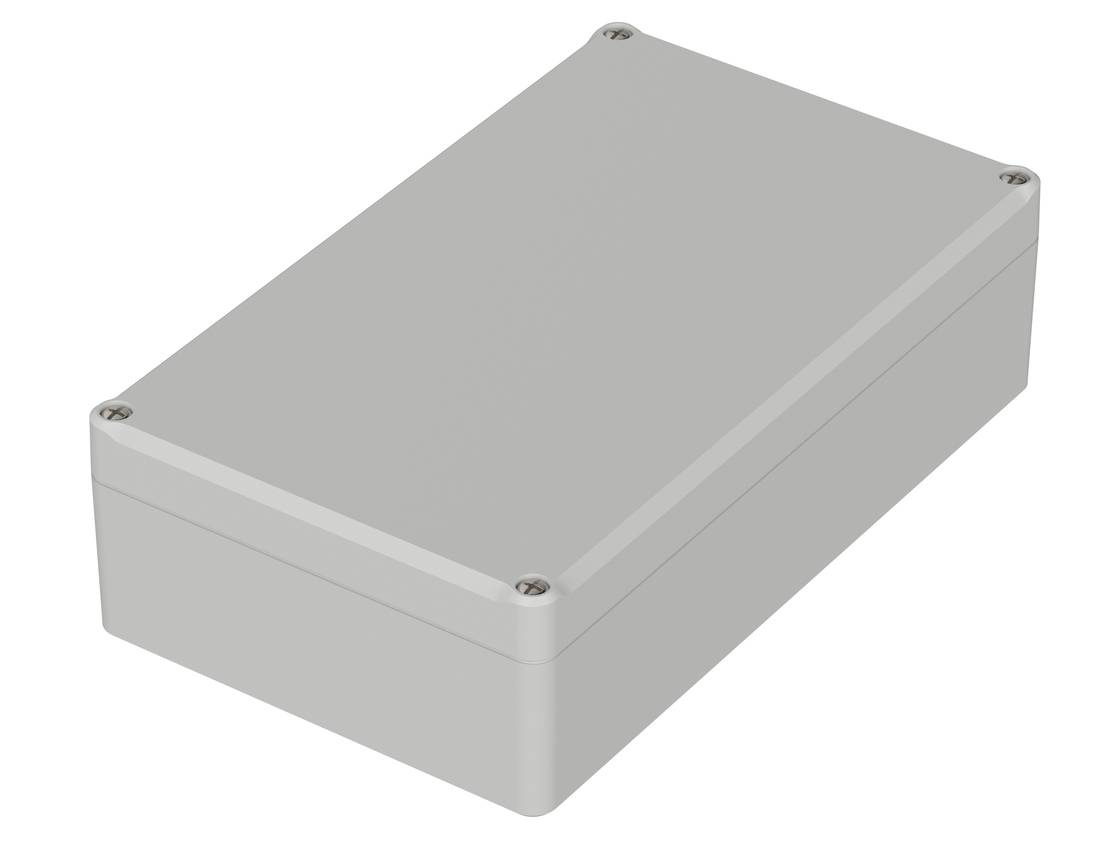

Bopla ET 214 LP (63214300)- ABS enclosure without recess in the cover ((200 x 120 x 57 mm))
Bopla ET 214 LP (63214300)- ABS enclosure without recess in the cover ((200 x 120 x 57 mm))
Bopla ET 214 LP (63214300)- ABS enclosure without recess in the cover ((200 x 120 x 57 mm))
Bopla ET 214 LP (63214300)- ABS enclosure without recess in the cover ((200 x 120 x 57 mm))

Bopla ET 214 LP (63214300)- ABS enclosure without recess in the cover ((200 x 120 x 57 mm))

Product length in millimeters200
Product width in millimeters120
Product height in millimetres57
Ingress ProtectionIP65
MaterialABS
Gasket materialNeoprene
ColourRAL 7035 - Light grey
Type of coverSmooth lid
MountingScrew-on
Size
uniwersalny
excl. VAT
16,01 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
PDF drawing - 63214300
STEP 3D model - 63214300
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
63214300
Series
Euromas II
Product length in millimetersProduct length in millimeters
200
Product width in millimetersProduct width in millimeters
120
Product height in millimetresProduct height in millimetres
57
Ingress ProtectionIngress Protection
IP65
MaterialMaterial
ABS
Gasket materialGasket material
Neoprene
ColourColour
RAL 7035 - Light grey
Type of coverType of cover
Smooth lid
MountingMounting
Screw-on
Search

Bopla ET 214 LP (63214300)

A classic industrial enclosure. The possibility of mounting PCBs in the base or the cover of the enclosure. Plastic screw covers EM-SA, numerous mounting accessories available separately. The high quality of the material used is greatly appreciated during the enclosure milling process.

A precisely installed neoprene gasket in the enclosure cover. The non-falling screws from the enclosure cover are mounted to high-quality bushings in the enclosure base. Additionally, the mounting screws are concealed by a special EM-SA cover ordered separately, giving an elegant shape to the enclosure. Custom-sized mounting plates, TS rails, and mast mounting brackets are available.

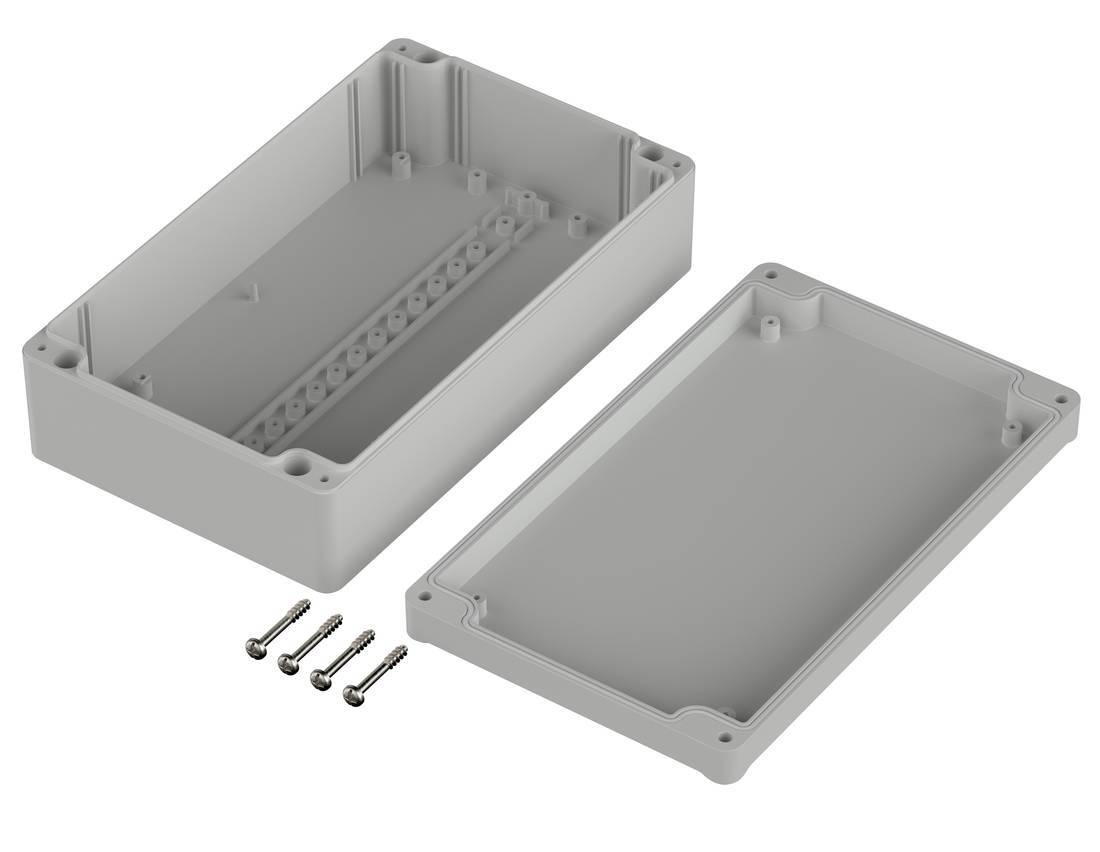

The package includes the base and cover with mounting screws.
