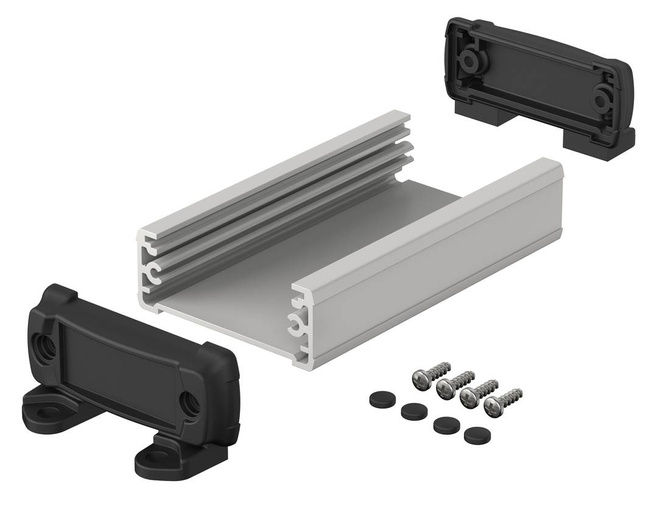

BOPLA ELPU 620-0100 DW (83627100.S7) - aluminium profile, open on one side with wall brackets (57.5 x 22 x 100 mm)
BOPLA ELPU 620-0100 DW (83627100.S7) - aluminium profile, open on one side with wall brackets (57.5 x 22 x 100 mm)
BOPLA ELPU 620-0100 DW (83627100.S7) - aluminium profile, open on one side with wall brackets (57.5 x 22 x 100 mm)
BOPLA ELPU 620-0100 DW (83627100.S7) - aluminium profile, open on one side with wall brackets (57.5 x 22 x 100 mm)

BOPLA ELPU 620-0100 DW (83627100.S7) - aluminium profile, open on one side with wall brackets (57.5 x 22 x 100 mm)

Product length in millimeters100
Product height in millimetres22
Product width in millimeters57.5
Profile type Aluminium profile open on one side
MaterialAluminum
Ingress ProtectionIP40
ColourRAL 9005 - Jet blackNatural-coloured anodised
Product length in millimeters
Profile type
Wall brackets
Size
uniwersalny
excl. VAT
55,20 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Drawing - 83627100.S7
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
83627100.S7
Series
BOS-Ecoline
Product length in millimetersProduct length in millimeters
100
Product height in millimetresProduct height in millimetres
22
Product width in millimetersProduct width in millimeters
57.5
Profile type
Aluminium profile open on one side
MaterialMaterial
Aluminum
Ingress ProtectionIngress Protection
IP40
ColourColour
RAL 9005 - Jet black
Natural-coloured anodised
Wall brackets
Yes
Search

Bopla ELPU 620-0100 DW (83627100.S7)

Anodized open aluminum profile with dimensions of 57.5 x 22 x 100 mm, made using the "extruded profiles" technology, with guides for PCB boards. When combined with separate plastic lids and aluminum front panels, it provides an IP40 sealing class according to DIN EN 60529. The plastic covers have external recesses for flush-mounted keyboard assembly, while internally they have pins for securing the PCB. It is possible to integrate a radiator.

The package includes the aluminum profile along with plastic lids with wall brackets and mounting screws.
