BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)
BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)

BOPLA BS 700 F-7024 (82700124) - ABS enclosure (184.3 x 93 x 35.4 mm)

Product length in millimeters184.3
ColourRAL 7024 - Graphite grey
MaterialABS
Display screenNo
Battery compartmentNo
Type of sealInserted (DI-D purchased separately)
Ingress ProtectionIP40IP65
Product width in millimeters93
Próbkitak
Product height in millimetres35.4
Colour
Display screen
Battery compartment
Type of seal
Size
uniwersalny
excl. VAT
59,90 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Order a sample
Compare
Drawing - 82700124
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
82700124
Producer code
5900000738901
Series
BOS-Streamline
Product length in millimetersProduct length in millimeters
184.3
ColourColour
RAL 7024 - Graphite grey
MaterialMaterial
ABS
Display screenDisplay screen
No
Battery compartmentBattery compartment
No
Type of sealType of seal
Inserted (DI-D purchased separately)
Ingress ProtectionIngress Protection
IP40
IP65
Product width in millimetersProduct width in millimeters
93
Product height in millimetresProduct height in millimetres
35.4
Search

BOPLA BS 700 F-7024 (82700124)

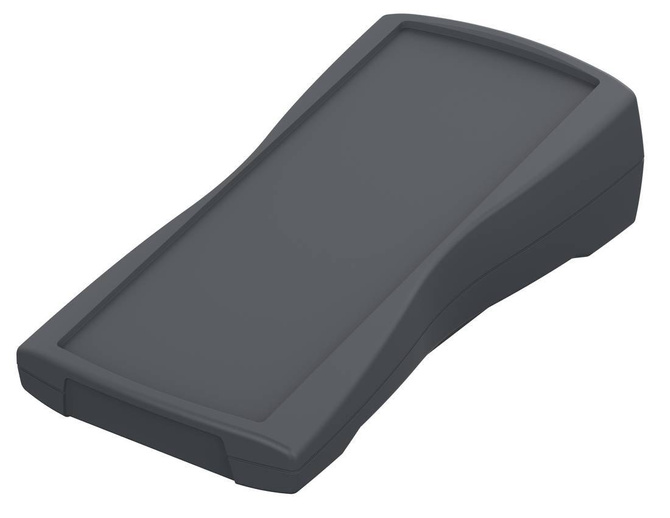

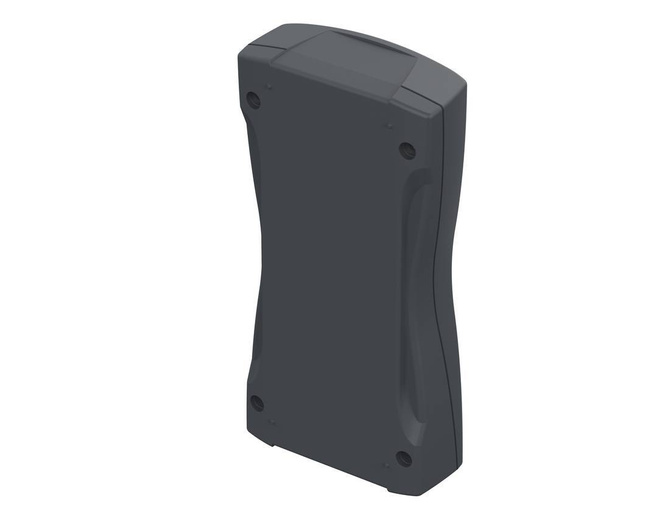

ABS enclosure in dimension 184.3 x 93 x 35.4 mm in colour similar to RAL 7024 with membrane keypad area, which can be use to mount display and/or membrane keypad.

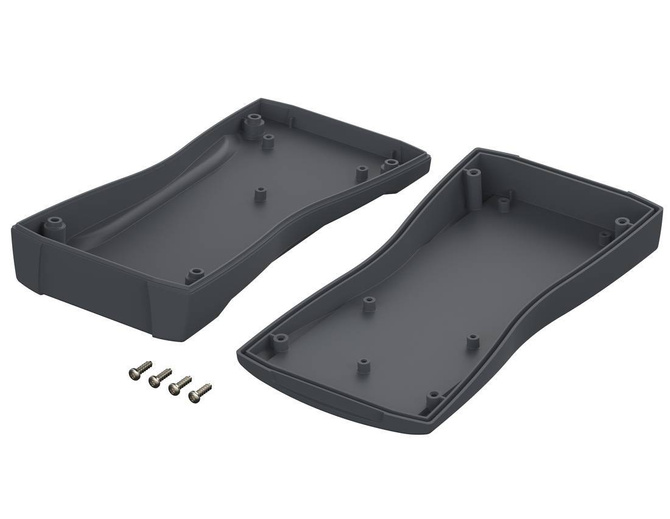

Flat or inclined design by turning the enclosure half-shells. It can be combined with decour seals. Other materials and colours on special order.

Ingress protection can be increased to IP65 after applying DI-D decor seal.

Additional services

We can offer you a number of additional services covering each of the enclosures purchased in our store:

  • mechanical processing:
    •  
    • milling,
    • drilling,
    • threading;


  • prints making:
    •  
    • digital printing,
    • laser marking,
    • screen printing,
    • pad printing,
    • EMC coating;


  • selection and integration of components:
    •  
    • displays,
    • membrane keyboards,
    • electronic modules,
    • electromechanical elements (e.g. cable glands and pressure compensation elements),
    • touch screens,
    • cables,
    • EMC shielding.


For more details, please contact us directly.
