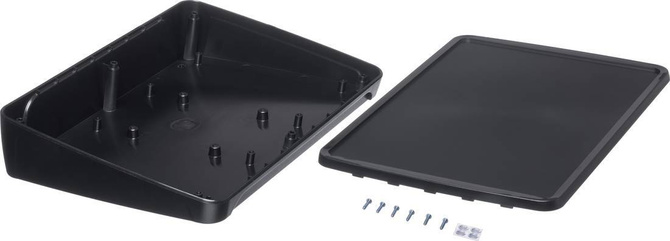

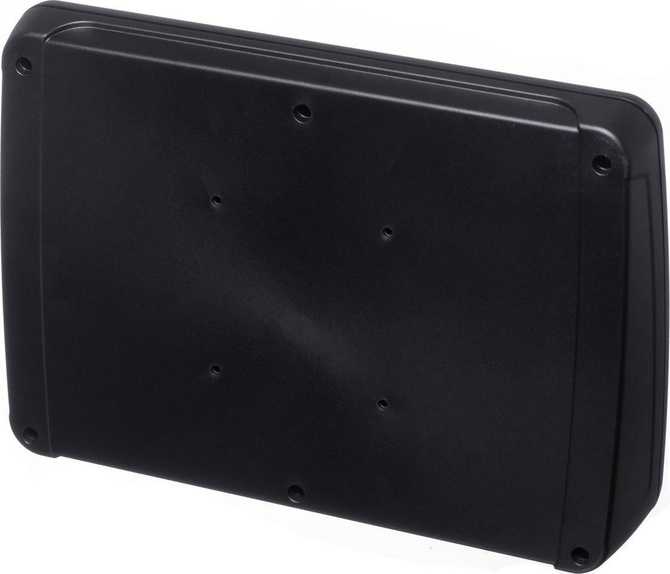

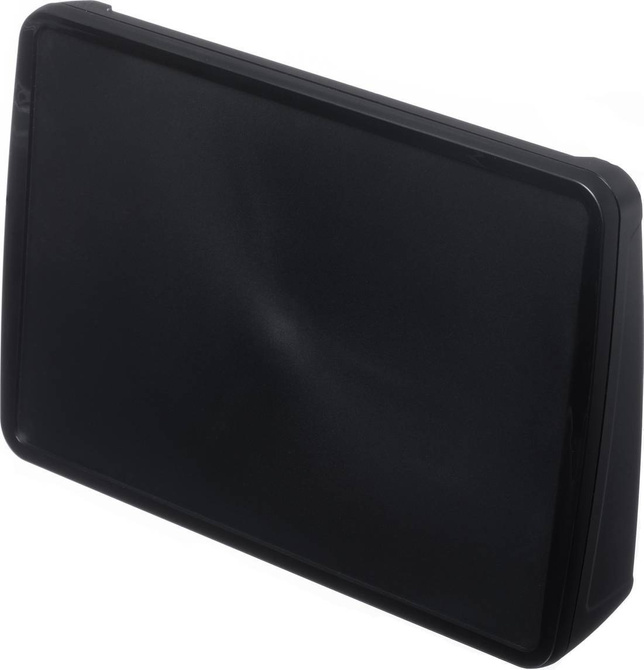

Bopla BOP 10.1 PQ-9005 (35110145) - ABS Touch/operating console enclosure horizontal (285 x 198 x 61.2 mm)
Details
Parametry
Find similar products
Brand
Symbol
35110145
Series
Product length in millimeters
285
Product height in millimetres
61.2
Product width in millimeters
198
Material
ABS
Gasket material
TPE
Ingress Protection
IP40
IP65
Colour
RAL 9005 - Jet black
Bopla BOP 10.1 PQ-9005 (35110145)
Ergonomic enclosure with dimensions of 285 x 198 x 61.2 mm in black color similar to RAL 9005, featuring a surface recess for mounting a display and/or membrane keyboard. Highly recommended for integrating HMI (Human-Machine Interface) in 7.0 and 10.1-inch sizes. A custom-selected and matched glass with anti-reflective coating available upon request. Materials and colors other than catalog options available for special orders. The possibility of increasing the enclosure's sealing rating to IP 65 using BOP_DI gaskets available in various colors. Optional wall mounting through VESA bracket.
Additional services
We can offer you a number of additional services covering each of the enclosures purchased in our store:
- mechanical processing:
- milling,
- drilling,
- threading;
- prints making:
- digital printing,
- laser marking,
- screen printing,
- pad printing,
- EMC coating;
- selection and integration of components:
- displays,
- membrane keyboards,
- electronic modules,
- electromechanical elements (e.g. cable glands and pressure compensation elements),
- touch screens,
- cables,
- EMC shielding.
For more details, please contact us directly.
