Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed  (259 x 128 x 60 mm)
Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed  (259 x 128 x 60 mm)
Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed  (259 x 128 x 60 mm)
Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed  (259 x 128 x 60 mm)
Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed  (259 x 128 x 60 mm)
Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed  (259 x 128 x 60 mm)

Bopla BA-S 241306 F-7035 (00165225) - enclosure with membrane lid, screwed (259 x 128 x 60 mm)

Product length in millimeters259
Product height in millimetres60
Product width in millimeters128
MaterialAluminum
Ingress ProtectionIP66IP69
Gasket materialNeoprene
Type of coverWith membrane lid
MountingScrew-on
Gasket material
Colour
Type of cover
Mounting
net
222,27 zł
incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
00165225
Product length in millimetersProduct length in millimeters
259
Product height in millimetresProduct height in millimetres
60
Product width in millimetersProduct width in millimeters
128
MaterialMaterial
Aluminum
Ingress ProtectionIngress Protection
IP66
IP69
Gasket materialGasket material
Neoprene
Type of cover
With membrane lid
MountingMounting
Screw-on
ColourColour
Light grey - RAL 7035
CertificateCertificate
EN 45545-2 [HL 3]
Search

Bopla BA-S 241306 F-7035 (00165225)

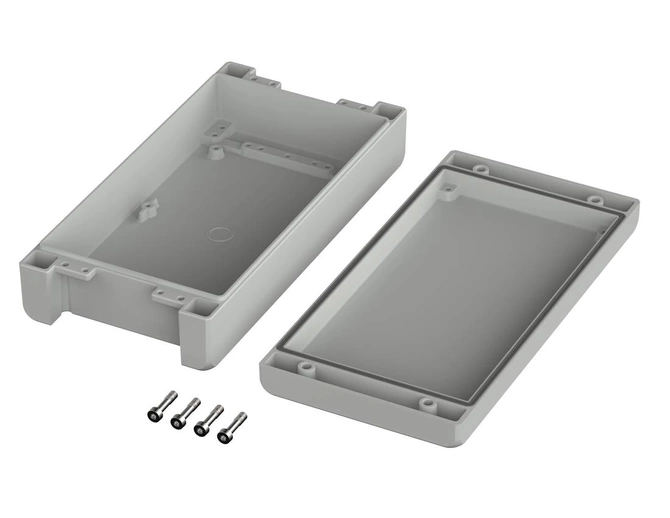

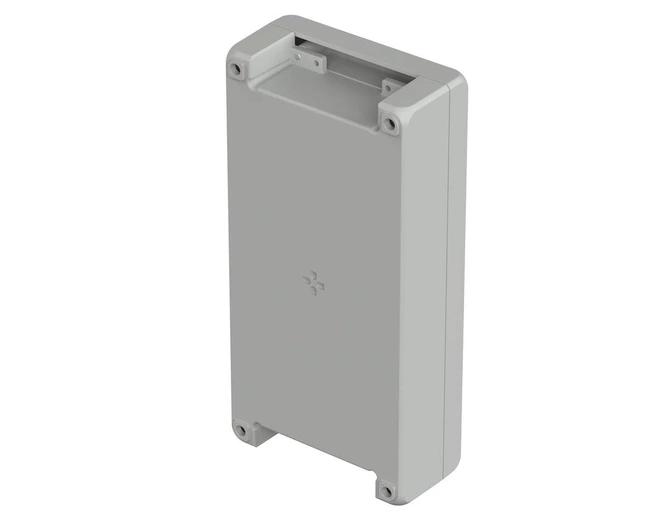

A modern, design-oriented industrial enclosure made of aluminum while maintaining high protection standards. Secured with screws. The cover features a recess for mounting flush displays and keyboards, while providing ample space on the sides for cable glands. A precisely installed neoprene gasket ensures a high degree of protection, IP 69 according to DIN EN 60529. It complies with R1 or R7 requirements according to DIN EN 45545-2 for hazard level HL3 and UL certification requirements. It has achieved an impact protection rating of IK07 according to IEC 62262. In terms of shape, the aluminum Bocube Alu enclosure line corresponds to the plastic Bocube enclosures, allowing for a consistent marketing image of devices. Custom colors, including unpainted enclosures, are available upon request. The package includes both the top and bottom of the enclosure along with mounting screws.

We separately provide custom-sized mast mounting brackets for enclosure installation on poles (mast mounting), along with steel clamps, mounting plates, DIN rails, pressure equalization valves, and handles for carrying the enclosure installed on the cover. If you are interested in these accessories, please feel free to contact us.
