Details
Parametry
Find similar products
Brand
Symbol
96036365
Producer code
5900000739380
Series
Product length in millimeters
271
Product height in millimetres
120
Product width in millimeters
170
Material
ABS
Ingress Protection
IP66
IP68
Colour
Light grey - RAL 7035
Certificate
EN 45545-2 [HL 3]
Type of cover
Nontransparent lid

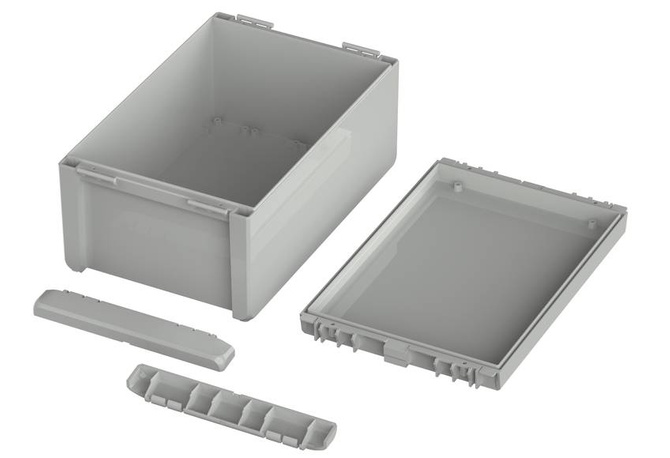

Bopla B 261712 ABS 7035 (96036365)
Elegant in shape, this industrial housing is foldable without the use of mounting screws, thanks to the patented innovative hinge system based on a "quick-release" principle between the top and bottom of the enclosure. To open the cover, all you need is a flat-head screwdriver.Optionally, B.SC HB hinges for manual opening without any tools are available. Additionally, the hinges can be locked using B VS plugs. PCB mounting is possible both in the base and just below the cover, with the option to use mounting plates B FP or B M along with mounting elements like spacer bolts (DIBLZ) and screws B SHR. The enclosure can be customized for HMI projects by designing a suitable mounting area for displays and keyboards.
The product has an IP66 and IP68 waterproof rating – IP68: tested in a water chamber at a depth of 1.2 meters for 2 hours.
The kit includes a cover, base, and two identical B SC hinges in the color of the enclosure, opened with a screwdriver. The hinges are also available in other colors, sold separately, including the manually operated hinge in the enclosure color B SC HB-E
