Bopla B 180809 PC-V0-G 7024 (96024134) - universal enclosure with crystal-clear lid (191 x 80 x 90 mm)
Product length in millimeters191
Product height in millimetres90
Product width in millimeters80
MaterialPolycarbonate - PC UL 94 V-0Details
Bopla B 180809 PC-V0-G 7024 (96024134)
Elegant in shape, this industrial housing is foldable without the use of mounting screws, thanks to the patented innovative hinge system based on a "quick-release" principle between the top and bottom of the enclosure. To open the cover, all you need is a flat-head screwdriver.
Optionally, B.SC HB hinges for manual opening without any tools are available. Additionally, the hinges can be locked using B VS plugs. PCB mounting is possible both in the base and just below the cover, with the option to use mounting plates B FP or B M along with mounting elements like spacer bolts (DIBLZ) and screws B SHR. The enclosure can be customized for HMI projects by designing a suitable mounting area for displays and keyboards.
The product has an IP66 and IP68 waterproof rating – IP68: tested in a water chamber at a depth of 1.2 meters for 2 hours.

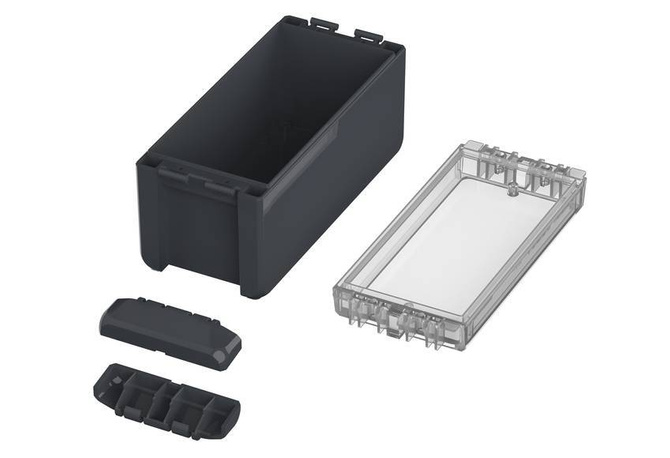

The kit includes a crystal-clear lid, base, and two identical B SC hinges in the color of the enclosure, opened with a screwdriver. The hinges are also available in other colors, sold separately, including the manually operated hinge in the enclosure color B SC HB-E
