Brand
Symbol
96034125
Producer code
5900000761381
Series
Product length in millimeters![Product length in millimeters](/gfx/standards/loader.gif?r=1724931639)
![Product length in millimeters](/gfx/standards/loader.gif?r=1724931639)
191
Product height in millimetres![Product height in millimetres](/gfx/standards/loader.gif?r=1724931639)
![Product height in millimetres](/gfx/standards/loader.gif?r=1724931639)
60
Product width in millimeters![Product width in millimeters](/gfx/standards/loader.gif?r=1724931639)
![Product width in millimeters](/gfx/standards/loader.gif?r=1724931639)
80
Material![Material](/gfx/standards/loader.gif?r=1724931639)
![Material](/gfx/standards/loader.gif?r=1724931639)
ABS
Ingress Protection![Ingress Protection](/gfx/standards/loader.gif?r=1724931639)
![Ingress Protection](/gfx/standards/loader.gif?r=1724931639)
IP66
IP68
Colour![Colour](/gfx/standards/loader.gif?r=1724931639)
![Colour](/gfx/standards/loader.gif?r=1724931639)
RAL 7035 - Light grey
Certificate![Certificate](/gfx/standards/loader.gif?r=1724931639)
![Certificate](/gfx/standards/loader.gif?r=1724931639)
EN 45545-2 [HL 3]
Type of cover
Nontransparent lid

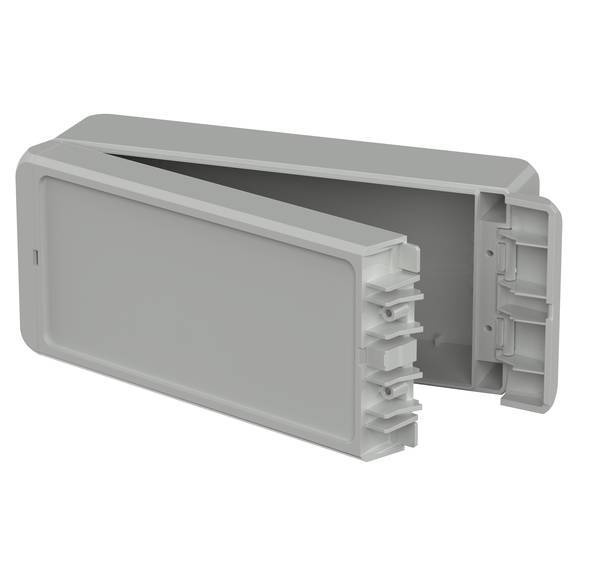

Bopla B 180806 ABS 7035 (96034125)
Elegant in shape, this industrial housing is foldable without the use of mounting screws, thanks to the patented innovative hinge system based on a "quick-release" principle between the top and bottom of the enclosure. To open the cover, all you need is a flat-head screwdriver.Optionally, B.SC HB hinges for manual opening without any tools are available. Additionally, the hinges can be locked using B VS plugs. PCB mounting is possible both in the base and just below the cover, with the option to use mounting plates B FP or B M along with mounting elements like spacer bolts (DIBLZ) and screws B SHR. The enclosure can be customized for HMI projects by designing a suitable mounting area for displays and keyboards.
The product has an IP66 and IP68 waterproof rating – IP68: tested in a water chamber at a depth of 1.2 meters for 2 hours.

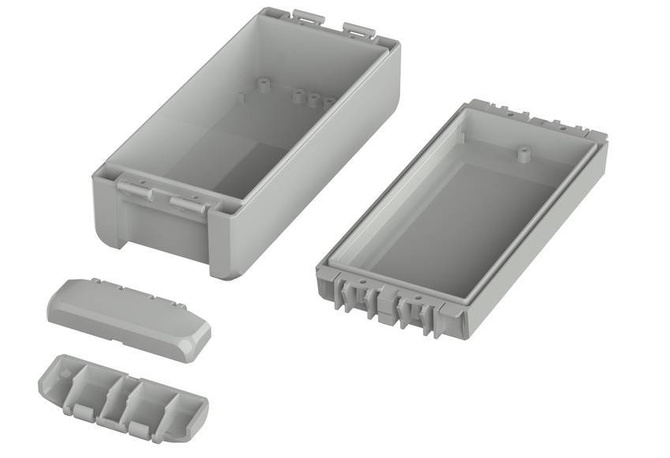

The kit includes a cover, base, and two identical B SC hinges in the color of the enclosure, opened with a screwdriver. The hinges are also available in other colors, sold separately, including the manually operated hinge in the enclosure color B SC HB-E
