Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)
Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)
Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)
Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)
Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)
Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)

Bopla B 141309 PC-V0-G 7024 (96023234) - universal enclosure with crystal-clear lid (151 x 125 x 90 mm)

Product length in millimeters151
Product height in millimetres90
Product width in millimeters125
MaterialPolycarbonate - PC UL 94 V-0
Ingress ProtectionIP66IP68
Type of coverTransparent lid
Próbkitak
Material
Colour
Type of cover
Size
uniwersalny
excl. VAT
107,05 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Order a sample
Compare
Drawing - 96023234
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
96023234
Producer code
5900000761343
Series
Bocube
Product length in millimetersProduct length in millimeters
151
Product height in millimetresProduct height in millimetres
90
Product width in millimetersProduct width in millimeters
125
MaterialMaterial
Polycarbonate - PC UL 94 V-0
Flammability - UL Standard
UL 94 V-0
Ingress ProtectionIngress Protection
IP66
IP68
ColourColour
RAL 7024 - Graphite grey
CertificateCertificate
EN 45545-2 [HL 3]
Type of cover
Transparent lid
Search

Bopla B 141309 PC-V0-G 7024 (96023234)

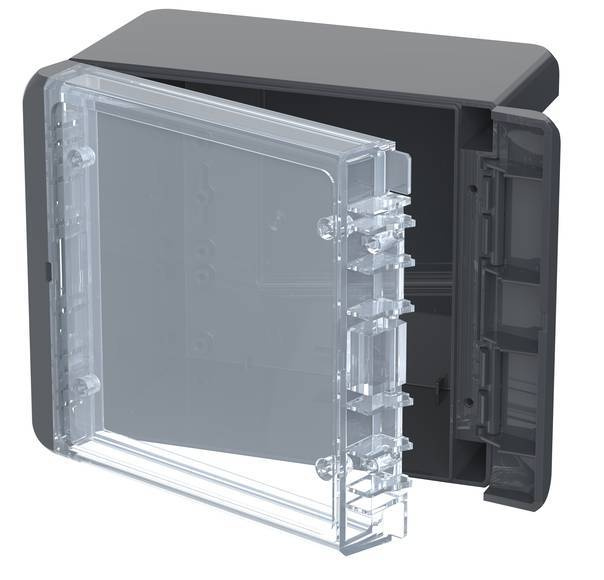

Elegant in shape, this industrial housing is foldable without the use of mounting screws, thanks to the patented innovative hinge system based on a "quick-release" principle between the top and bottom of the enclosure. To open the cover, all you need is a flat-head screwdriver.

Optionally, B.SC HB hinges for manual opening without any tools are available. Additionally, the hinges can be locked using B VS plugs. PCB mounting is possible both in the base and just below the cover, with the option to use mounting plates B FP or B M along with mounting elements like spacer bolts (DIBLZ) and screws B SHR. The enclosure can be customized for HMI projects by designing a suitable mounting area for displays and keyboards.

The product has an IP66 and IP68 waterproof rating – IP68: tested in a water chamber at a depth of 1.2 meters for 2 hours.

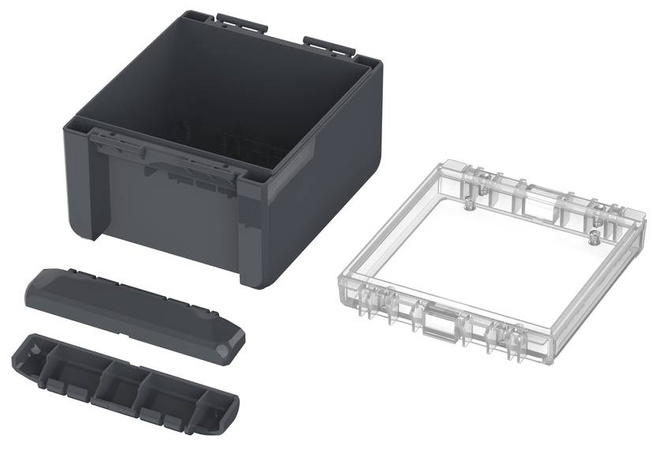

The kit includes a crystal-clear lid, base, and two identical B SC hinges in the color of the enclosure, opened with a screwdriver. The hinges are also available in other colors, sold separately, including the manually operated hinge in the enclosure color B SC HB-E
