Bopla AP 103050 (64313050) - Aluplan aluminum profiles (378 x 578 x 100 mm)
Bopla AP 103050 (64313050) - Aluplan aluminum profiles (378 x 578 x 100 mm)
Bopla AP 103050 (64313050) - Aluplan aluminum profiles (378 x 578 x 100 mm)
Bopla AP 103050 (64313050) - Aluplan aluminum profiles (378 x 578 x 100 mm)

Bopla AP 103050 (64313050) - Aluplan aluminum profiles (378 x 578 x 100 mm)

Product length in millimeters378
Product height in millimetres100
Product width in millimeters578
MaterialAluminum
Ingress ProtectionIP65
excl. VAT
941,27 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
64313050
Series
Product length in millimetersProduct length in millimeters
378
Product height in millimetresProduct height in millimetres
100
Product width in millimetersProduct width in millimeters
578
MaterialMaterial
Aluminum
Ingress ProtectionIngress Protection
IP65
ColourColour
Light grey - RAL 7035
Gasket materialGasket material
Neoprene
Search

Bopla AP 103050 (64313050)

Aluplan aluminum profiles are manufactured using the "extruded profiles" technology and feature multiple guides for PCBs. They are connected with screws covered by plastic enclosures. Dimensionally matched upper and lower aluminum plates, AP...FA3, are ordered separately , allowing for achieving IP65 and the assembly of keyboards, displays, or mechanical switches. They exhibit very good EMC properties.

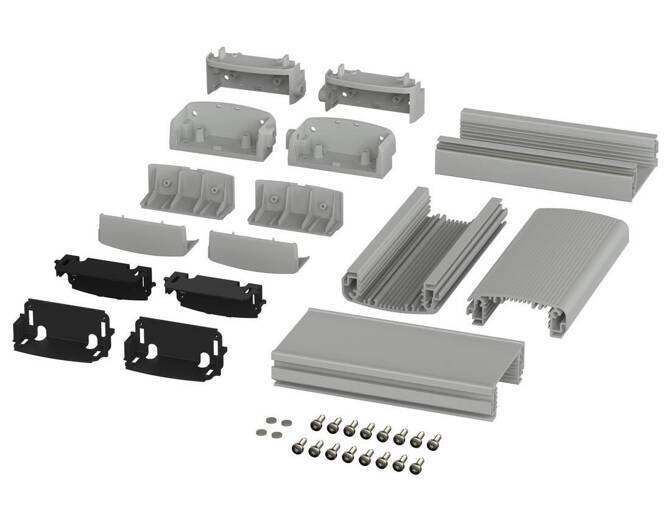

The set includes a complete kit consisting of four powder-coated aluminum profiles with mounted seals, corner connectors, screws, and rubber feet.
