Bernic Series 700, 4 module enclosure (4969010703)

Classic four-module stepped enclosure meeting DIN 43880 standard for dimensions of built-in installation devices for mounting in distribution boards, measuring stations, etc., as well as DIN EN 50 022 standard for snap-on mounting on DIN rails. Inside the enclosure, there are guides for PCB mounting and mounting studs in the base. As standard, the enclosure is made of high-quality polycarbonate meeting UL 94 V0 certification requirements.

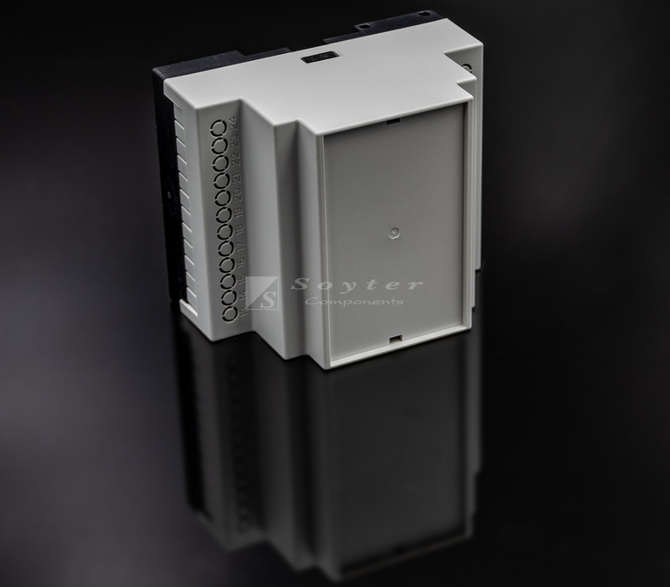

Lid with knock-out elements at the base and cut-outs (pre-punchings) for mounting screw connections without the need to mill the enclosure. The lid contains numbers 1 to 12 and 13 to 24, which allows you to mark the pins of the terminal connectors.

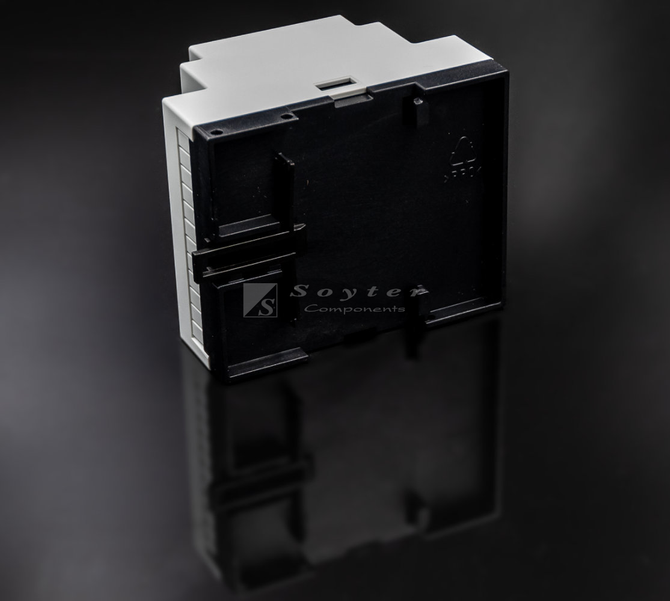

The set includes a complete enclosure consisting of a gray top part and a black base part along with a mounting bracket for DIN rail and screws. The wall mounting bracket is offered separately.

Upon special request, we offer mechanical fitting of connectors, keyboards, and milling along with final execution documentation with calculated tolerances. Feel free to contact us.
