Bernic Series 520, 3 module enclosure (4969025250)
Product length in millimeters52
MaterialPolycarbonate - PC UL 94 V-0Details
Parametry
Find similar products
Brand
Symbol
4969025250
Producer code
5900000614922
Series
Product length in millimeters
52
Product width in millimeters
86
Product height in millimetres
57
Material
Polycarbonate - PC UL 94 V-0
Modules
3
Ingress Protection
IP20
Flammability - UL Standard
UL 94 V-0
Colour
RAL 7035 - Light grey
RAL 9005 - Jet black
Norm
DIN 43880
Type of cover
Without holes
Ventilation
No

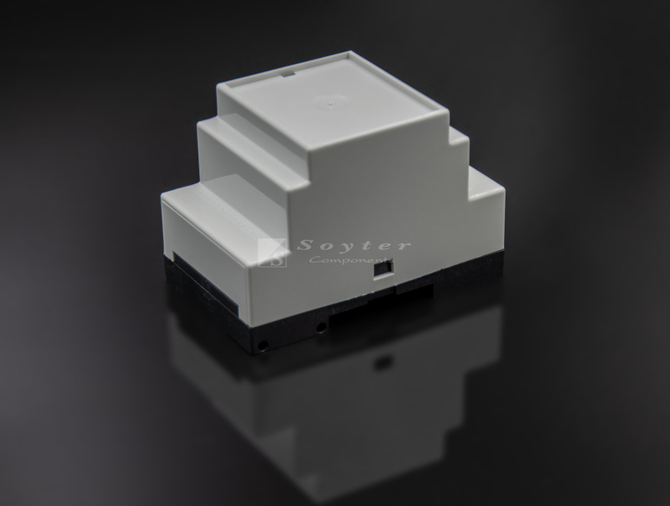

Bernic Series 520, 3 module enclosure (4969025250)

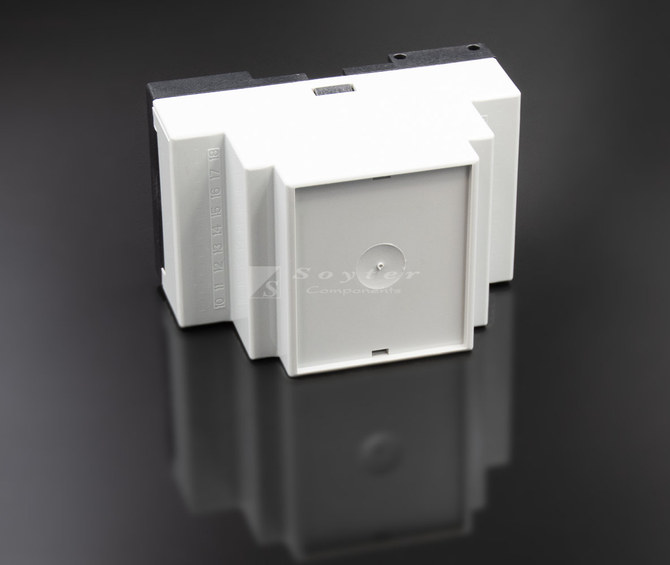

Classic three-module stepped enclosure meeting DIN 43880 standard for dimensions of built-in installation devices for mounting in distribution boards, measuring stations, etc., as well as DIN EN 50 022 standard for snap-on mounting on DIN rails. Inside the enclosure, there are guides for PCB mounting and mounting studs in the base. As standard, the enclosure is made of high-quality polycarbonate meeting UL 94 V0 certification requirements.Full lid without holes. In this version of the lid, we mill holes for mounting terminal blocks of various series (push-in, screw-type...) according to the customer's design and idea. The lid contains numbers 1 to 9 and 10 to 18, which allows you to mark the pins of the terminal connectors.

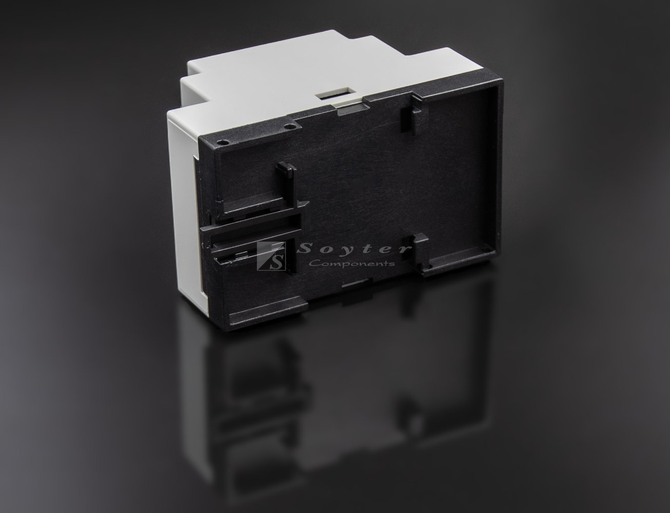

The set includes a complete enclosure consisting of a gray top part and a black base part along with a mounting bracket for DIN rail and screws. The wall mounting bracket is offered separately. Upon special request, we offer mechanical fitting of connectors, keyboards, and milling along with final execution documentation with calculated tolerances. Feel free to contact us.
