Bernic Series 350, 2 module enclosure (4969010350)

Classic two-module stepped enclosure meeting DIN 43880 standard for dimensions of built-in installation devices for mounting in distribution boards, measuring stations, etc., as well as DIN EN 50 022 standard for snap-on mounting on DIN rails. Inside the enclosure, there are guides for PCB mounting and mounting studs in the base. As standard, the enclosure is made of high-quality polycarbonate meeting UL 94 V0 certification requirements.

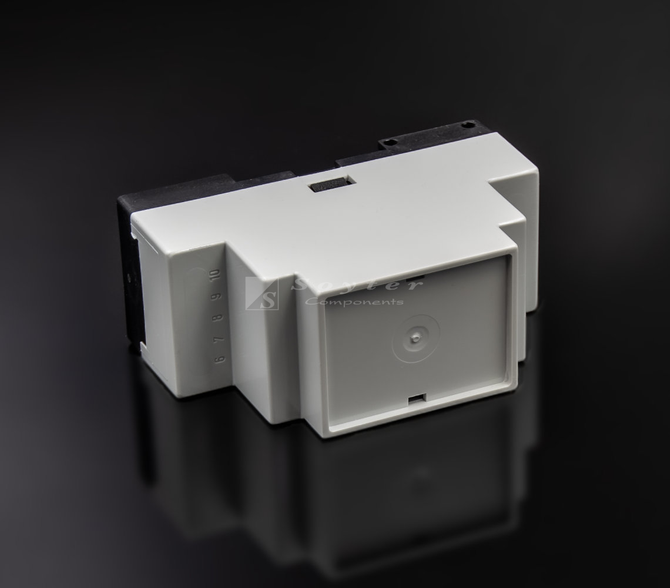

Full lid without holes. In this version of the lid, we mill holes for mounting terminal blocks of various series (push-in, screw-type...) according to the customer's design and idea. The lid contains numbers 1 to 5 and 6 to 10, which allows you to mark the pins of the terminal connectors.

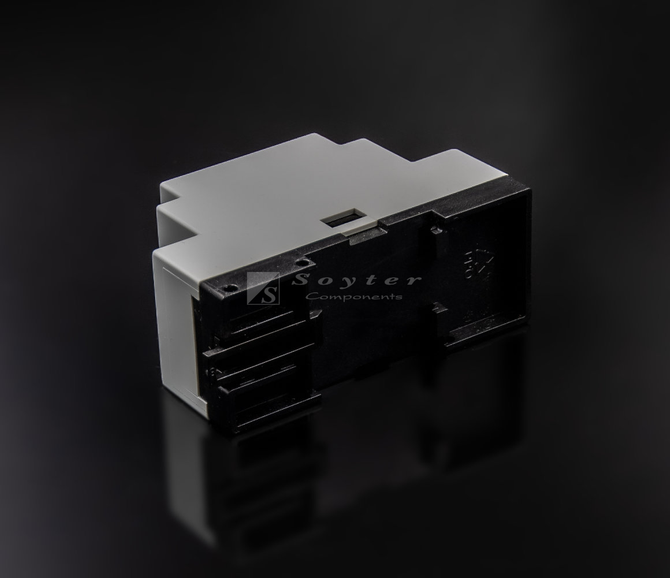

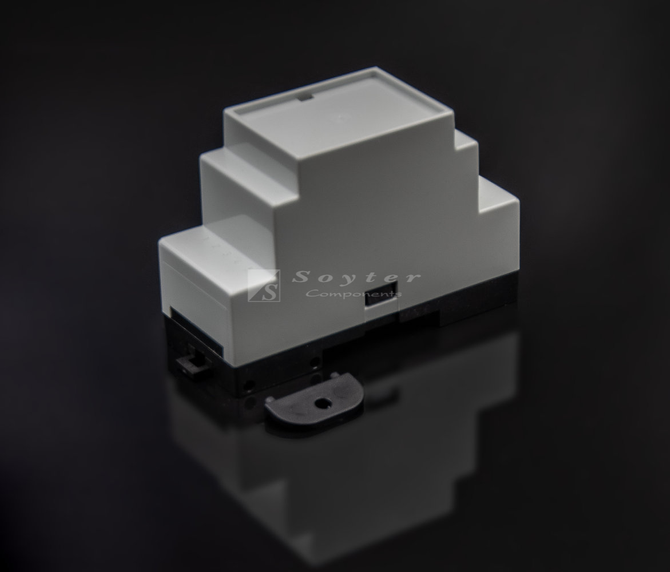

The set includes a complete enclosure consisting of a gray top part and a black base part along with a mounting bracket for DIN rail and screws. The wall mounting bracket is offered separately.

Upon special request, we offer mechanical fitting of connectors, keyboards, and milling along with final execution documentation with calculated tolerances. Feel free to contact us.
