Bernic Series 2600, 15 module enclosure (4969012600)
Bernic Series 2600, 15 module enclosure (4969012600)
Bernic Series 2600, 15 module enclosure (4969012600)
Bernic Series 2600, 15 module enclosure (4969012600)

Bernic Series 2600, 15 module enclosure (4969012600)

Product length in millimeters260
MaterialPolycarbonate - PC UL 94 V-0
Modules15
NormDIN 43880
Type of coverWithout holes
VentilationNo
Type of cover
Size
uniwersalny
excl. VAT
24,76 zł
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Bernic Series 2600, 15 module enclosure (4969012600)
Bernic Series 2600, 15 module enclosure (4969012600)
Type of cover:Without holes
uniwersalny
Safe shopping
Compare
Product Data Sheet - 4969012600
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bernic
Symbol
4969012600
Producer code
5900000848068
Series
Series 2600
Product length in millimetersProduct length in millimeters
260
Product width in millimetersProduct width in millimeters
86
Product height in millimetresProduct height in millimetres
57
MaterialMaterial
Polycarbonate - PC UL 94 V-0
Modules
15
Ingress ProtectionIngress Protection
IP20
Flammability - UL Standard
UL 94 V-0
ColourColour
RAL 7035 - Light grey
RAL 9005 - Jet black
Norm
DIN 43880
Type of cover
Without holes
Ventilation
No
Search

Bernic Series 2600, 15 module enclosure (4969012600)

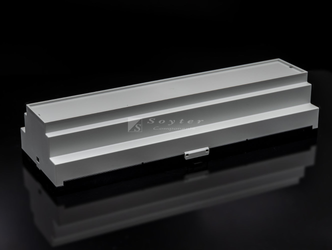

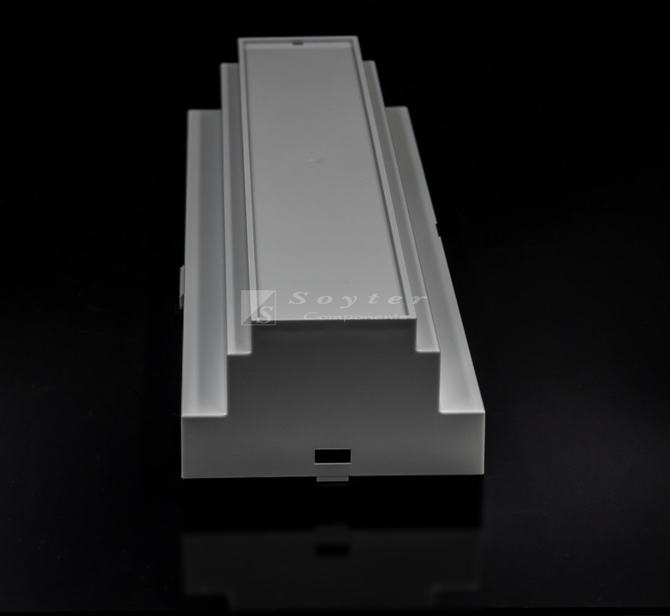

Classic fifteen-module stepped enclosure meeting DIN 43880 standard for dimensions of built-in installation devices for mounting in distribution boards, measuring stations, etc., as well as DIN EN 50 022 standard for snap-on mounting on DIN rails. Inside the enclosure, there are guides for PCB mounting and mounting studs in the base. As standard, the enclosure is made of high-quality polycarbonate meeting UL 94 V0 certification requirements.

Full lid without holes. In this version of the lid, we mill holes for mounting terminal blocks of various series (push-in, screw-type...) according to the customer's design and idea.

The set includes a complete enclosure consisting of a gray top part and a black base part along with a mounting bracket for DIN rail and screws. The wall mounting bracket is offered separately.

Upon special request, we offer mechanical fitting of connectors, keyboards, and milling along with final execution documentation with calculated tolerances. Feel free to contact us.
