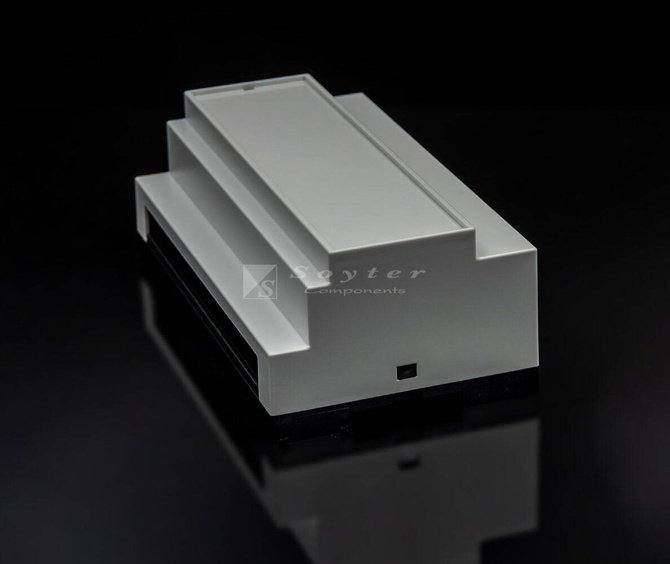

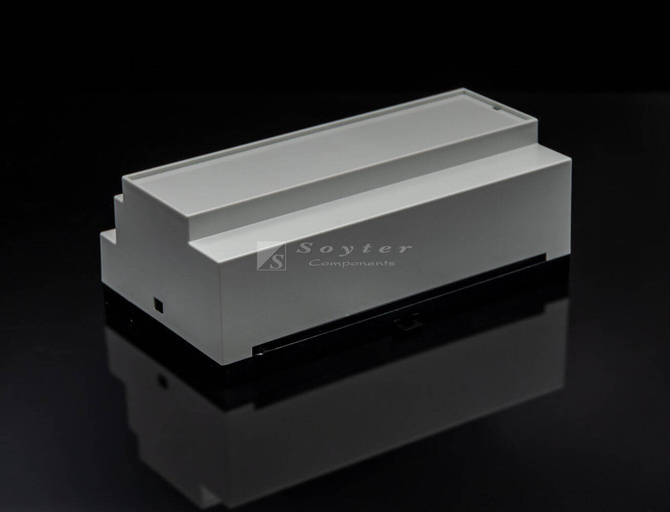

Bernic Series 1570 High/low, 9 module enclosure (497933571 + 4969021571)

Nine-module stepped enclosure meeting DIN 43880 standard for dimensions of built-in installation devices for mounting in distribution boards, measuring stations, etc., as well as DIN EN 50 022 standard for snap-on mounting on DIN rails. One of the side surfaces of the enclosure has been enlarged to provide more space for mounting connectors or terminal blocks, including high-current ones that are larger than standard plugs. Inside the enclosure, there are guides for PCB mounting and mounting studs in the base. As standard, the enclosure is made of high-quality polycarbonate meeting UL 94 V0 certification requirements.

Full lid with a hole at the base for easy installation of terminal connectors

The set includes a complete enclosure consisting of a gray top part and a black base part along with a mounting bracket for DIN rail and screws.

Upon special request, we offer mechanical fitting of connectors, keyboards, and milling along with final execution documentation with calculated tolerances. Feel free to contact us.
