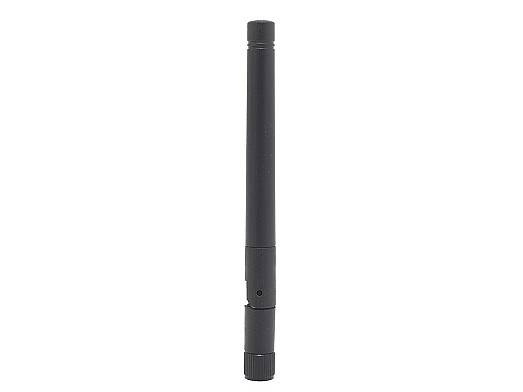

2J Antennas 2JW0315-868-C675B - ISM antenna
2J Antennas 2JW0315-868-C675B - ISM antenna
2J Antennas 2JW0315-868-C675B - ISM antenna
2J Antennas 2JW0315-868-C675B - ISM antenna

2J Antennas 2JW0315-868-C675B - ISM antenna

Antenna connector typeSMA male
MountingHinged connector
TechnologyISMIEEE 802.15.4LoRa
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JW0315-868-C675B
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JW0315-868-C675B
Producer code
5900000781686
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Hinged connector
TechnologyTechnology
ISM
IEEE 802.15.4
LoRa
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
113
Product diameter in millimetresProduct diameter in millimetres
10
Temperature rangeTemperature range
-40...+85°C
Frequency
863 - 870 MHz
Radiation pattern
Omni-directional
Polarisation
Linear
Max. VSWR
1,8
Max. gain
1,4 dBi
Impedance
50 Ohm
Search

2J Antennas 2JW0315-868-C675B

2JW0315-868-C675B is an external, hinged-connector-mounted antenna from 2J Antennas, optimized for ISM as well as supporting ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 863-870 MHz bands. The product dimensions are 113 × Φ 10 mm. SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
