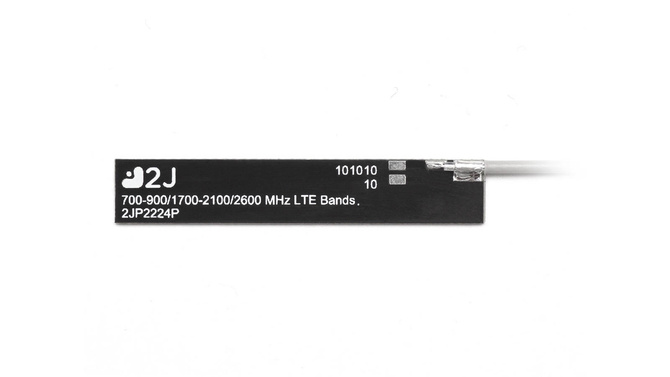

2J Antennas 2JP2224P-015MC137-UFL - 4G antenna
2J Antennas 2JP2224P-015MC137-UFL - 4G antenna
2J Antennas 2JP2224P-015MC137-UFL - 4G antenna
2J Antennas 2JP2224P-015MC137-UFL - 4G antenna

2J Antennas 2JP2224P-015MC137-UFL - 4G antenna

TechnologyLTEUMTSGSMNB-IoT
MountingAdhesive
Antenna typeFiberglass
Antenna connector typeIPEX
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JP2224P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JP2224P-015MC137-UFL
Producer code
5900000821078
TechnologyTechnology
LTE
UMTS
GSM
NB-IoT
MountingMounting
Adhesive
Antenna typeAntenna type
Fiberglass
Antenna connector typeAntenna connector type
IPEX
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
40More
Długość towaru w centymetrach
Product width in millimetersProduct width in millimeters
7
Product height in millimetresProduct height in millimetres
0.8
Cable length (in milimeters)
150
Temperature rangeTemperature range
-40...+85°C
Frequency
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
3,1
Max. gain
1,8 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2JP2224P-015MC137-UFL

2JP2224P is an embedded, adhesive-mounted, rigid fiberglass antenna from 2J Antennas, optimized for 4G and supporting 3G, 2G and LPWA standards. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz ranges. The product dimensions are 40 × 7 × 0.8 mm, cable 150 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
