2J Antennas 2JP1502P-SP-010MC137-UFL - ISM antenna
2J Antennas 2JP1502P-SP-010MC137-UFL - ISM antenna
2J Antennas 2JP1502P-SP-010MC137-UFL - ISM antenna
2J Antennas 2JP1502P-SP-010MC137-UFL - ISM antenna

2J Antennas 2JP1502P-SP-010MC137-UFL - ISM antenna

TechnologyISMBluetoothWiFiIEEE 802.15.4LoRa
MountingAdhesive
Antenna typeFiberglass
Antenna connector typeIPEX
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JP1502P-SP
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JP1502P-SP-010MC137-UFL
Producer code
5900000821054
TechnologyTechnology
ISM
Bluetooth
WiFi
IEEE 802.15.4
LoRa
MountingMounting
Adhesive
Antenna typeAntenna type
Fiberglass
Antenna connector typeAntenna connector type
IPEX
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
30
Product width in millimetersProduct width in millimeters
15
Product height in millimetresProduct height in millimetres
1
Cable length (in milimeters)
100
Temperature rangeTemperature range
-40...+85°C
Frequency
2410 - 2490 MHz
4920 - 7125 MHz
Max. VSWR
1,9
Max. gain
5 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2JP1502P-SP-010MC137-UFL

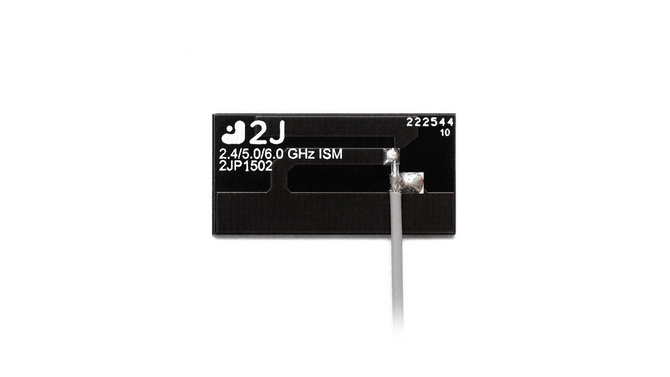

2JP1502P-SP is an embedded, adhesive-mounted, rigid-fiberglass antenna from 2J Antennas, optimized for ISM as well as supporting WiFi 6e, Bluetooth, ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 2410-2490 MHz, 4920-7125 MHz bands. The product dimensions are 30 × 15 × 1 mm, cable 100 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
