2J Antennas 2JP0424P-015MC137-UFL - 4G antenna
2J Antennas 2JP0424P-015MC137-UFL - 4G antenna
2J Antennas 2JP0424P-015MC137-UFL - 4G antenna
2J Antennas 2JP0424P-015MC137-UFL - 4G antenna

2J Antennas 2JP0424P-015MC137-UFL - 4G antenna

TechnologyLTEUMTSGSMNB-IoT
MountingAdhesive
Antenna typeFiberglass
Antenna connector typeIPEX
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JP0424P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JP0424P-015MC137-UFL
Producer code
5900000821061
TechnologyTechnology
LTE
UMTS
GSM
NB-IoT
MountingMounting
Adhesive
Antenna typeAntenna type
Fiberglass
Antenna connector typeAntenna connector type
IPEX
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
113
Product width in millimetersProduct width in millimeters
8.5
Product height in millimetresProduct height in millimetres
0.8
Cable length (in milimeters)
150
Temperature rangeTemperature range
-40...+85°C
Frequency
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
3,4
Max. gain
5,6 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2JP0424P-015MC137-UFL

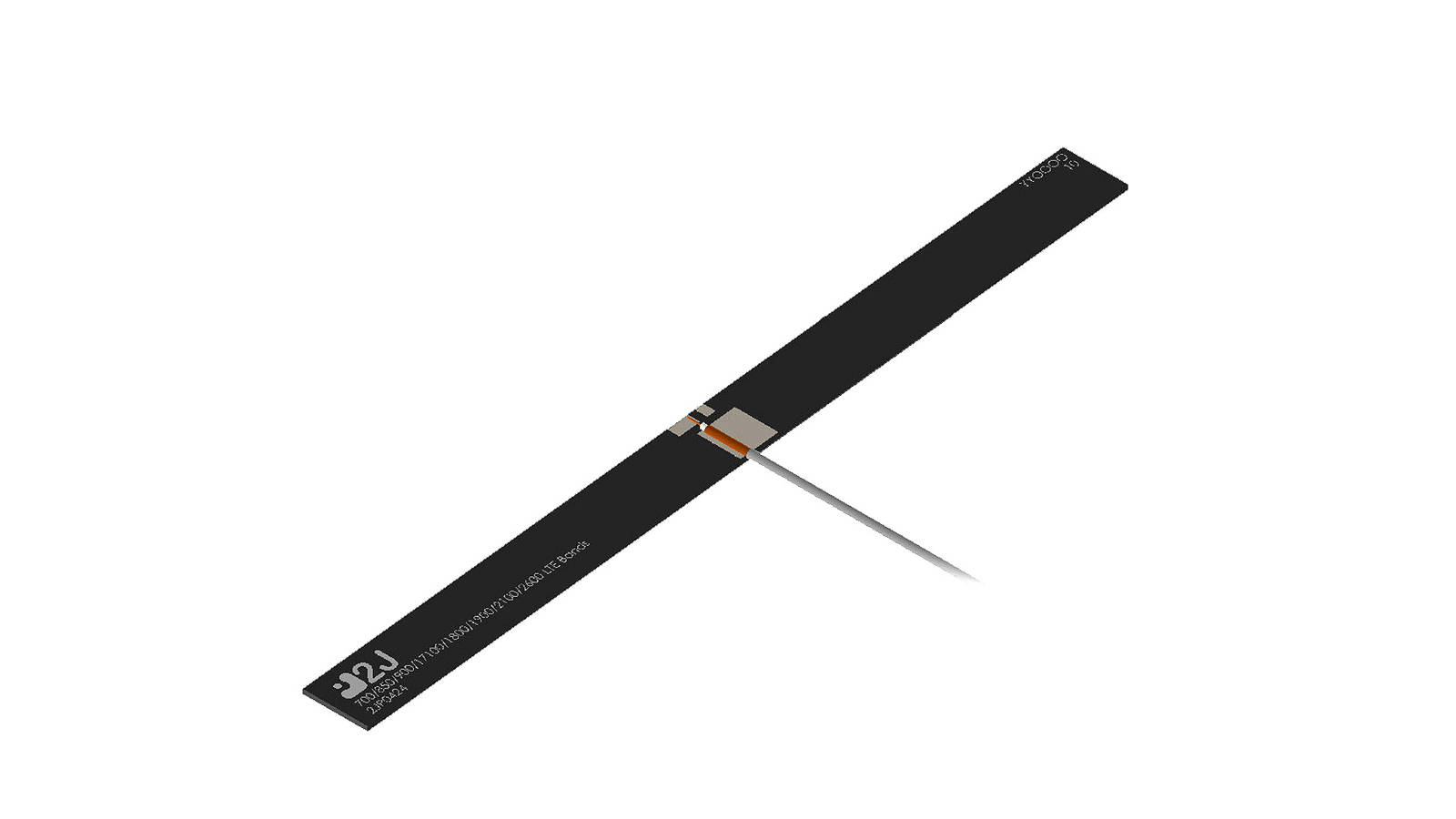

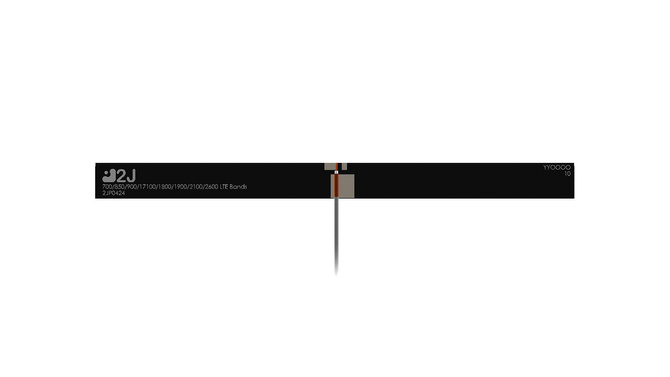

2JP0424P is an embedded, adhesive-mounted, fiberglass antenna from 2J Antennas, optimized for 4G and supporting 3G, 2G and LPWA standards. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz ranges. The product dimensions are 113 x 8.5 x 0.8 mm, cable 150 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
