2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna
2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna
2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna
2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna

2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna

Technology5G - Sub-6 GHzLTEUMTSGSMNB-IoT
MountingAdhesive
Antenna typeFiberglass
Antenna connector typeIPEX
Size
uniwersalny
excl. VAT
14,15 zł
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna
2J Antennas 2JP0383P-018MC137B-UFL - 5G antenna
uniwersalny
Safe shopping
Compare
Product Data Sheet - 2JP0383P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JP0383P-018MC137B-UFL
Producer code
5900000788227
TechnologyTechnology
5G - Sub-6 GHz
LTE
UMTS
GSM
NB-IoT
MountingMounting
Adhesive
Antenna typeAntenna type
Fiberglass
Antenna connector typeAntenna connector type
IPEX
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
90
Product width in millimetersProduct width in millimeters
14
Product height in millimetresProduct height in millimetres
0.9
Cable length (in milimeters)
180
Temperature rangeTemperature range
-40...+85°C
Frequency
617 - 960 MHz
1427 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
Max. VSWR
2,4
Max. gain
3,1 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2JP0383P-018MC137B-UFL

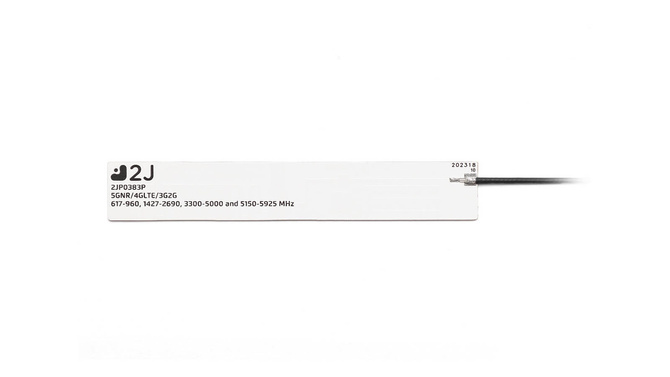

2JP0383P is an embedded, adhesive-mounted, rigid fiberglass antenna from 2J Antennas, optimized for 5G and supporting 4G, 3G, 2G and LPWA standards. The antenna supports frequencies from 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz ranges. The product dimensions are 90 × 14 × 0.9 mm, cable 180 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
