Brand
Symbol
2JF1424P
Product length in millimeters
40More
Długość towaru w centymetrach
Impedance
50 Ohm
Product width in millimeters
20
Temperature range
-40...+85°C
Antenna type
FPC
Antenna connector type
IPEX
Product height in millimetres
0.2
Technology
LTE
UMTS
NB-IoT
GSM
Cable length (in milimeters)
38
Mounting
Adhesive
Positioning
Internal
Radiation pattern
Omni-directional
Frequency
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
2,6
Max. gain
4,7 dBi
Polarisation
Linear

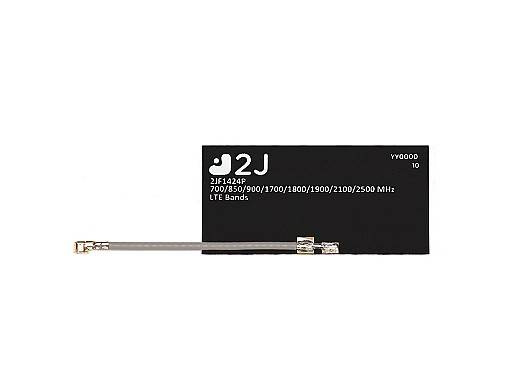

2J Antennas 2JF1424P
2JF1424P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 4G and supporting 3G, 2G and LPWA standards as well. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz ranges. The product dimensions are 40 × 20 × 0.2 mm, cable 38 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
