2J Antennas 2JF0883P - 5GNR antenna
2J Antennas 2JF0883P - 5GNR antenna
2J Antennas 2JF0883P - 5GNR antenna
2J Antennas 2JF0883P - 5GNR antenna

2J Antennas 2JF0883P - 5GNR antenna

Antenna typeFPC
Antenna connector typeIPEX
TechnologyLTEUMTSNB-IoT5G - Sub-6 GHzGSM
MountingAdhesive
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JF0883P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JF0883P-004,2MC137B-UFL
Producer code
5900000820934
Product length in millimetersProduct length in millimeters
50
Impedance
50 Ohm
Product width in millimetersProduct width in millimeters
20
Temperature rangeTemperature range
-40...+85°C
Antenna typeAntenna type
FPC
Antenna connector typeAntenna connector type
IPEX
Product height in millimetresProduct height in millimetres
0.2
TechnologyTechnology
LTE
UMTS
NB-IoT
5G - Sub-6 GHz
GSM
Cable length (in milimeters)
42
MountingMounting
Adhesive
PositioningPositioning
Internal
Radiation pattern
Omni-directional
Frequency
617 - 960 MHz
1427 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
Max. VSWR
2,7
Max. gain
3,8 dBi
Aplications
Industrial IoT devices
Wearables
Safety
Industrial automation
Commercial IoT devices
Motoryzacja
Transport
Robotics
Drones
Polarisation
Linear
Search

2J Antennas 2JF0883P

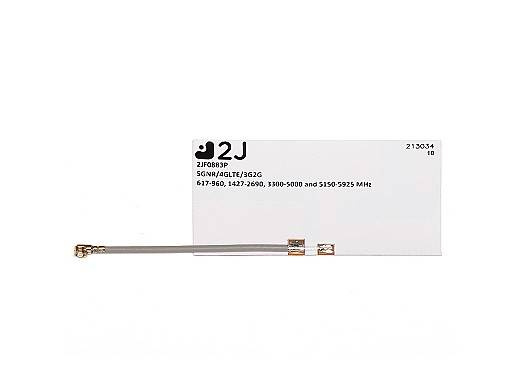

2JF0883P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 5GNR and supporting 4G, 3G, 2G and LPWA standards as well. The antenna supports frequencies from 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz ranges. The product dimensions are 50 × 20 x 0.2 mm, cable 42 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
